12. After verifying all connections and equipment readiness, collapse the SuperSYNCHRO
Timing
expander.
13. If necessary, click on the View tab to bring it to the front, and click on Acquire to begin
acquiring spectra or images.
The photocathode is biased on only for the time that each gate
pulse is applied. This limits the risk of damage resulting from
room light. However, there is a risk of damaging overload from
intense light sources such as lasers.
14. Figure 6-17 illustrates the graph for a Sequential -Repetitive experiment with fixed
width and variable delay.
Show Frame Cross Section has been selected. The intensity
of the selected point was at it maximum in Frame 23.

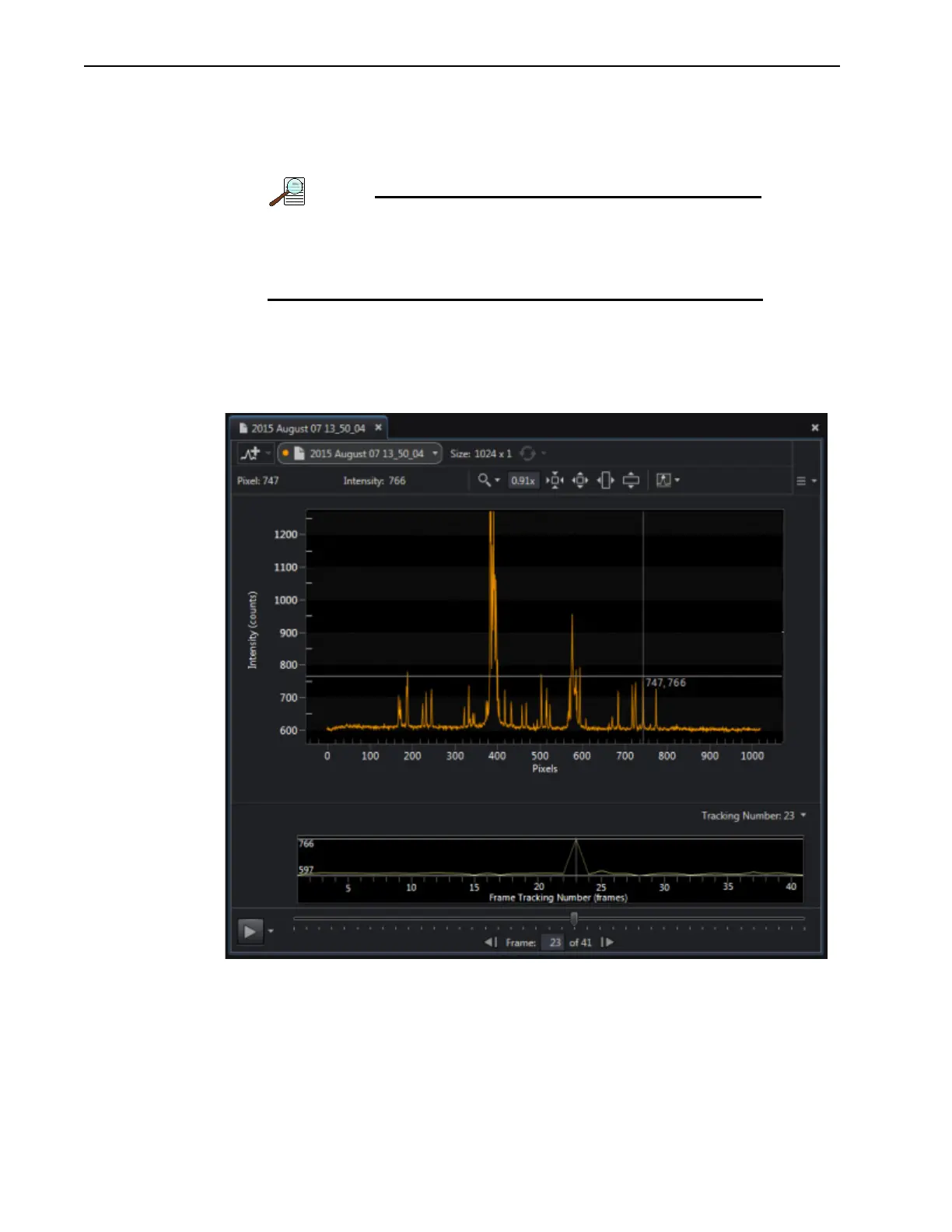

Figure 6-17: Typical Experiment Results: Frame Cross Section
