Chapter 14 PI-MAX4: EM Family 219

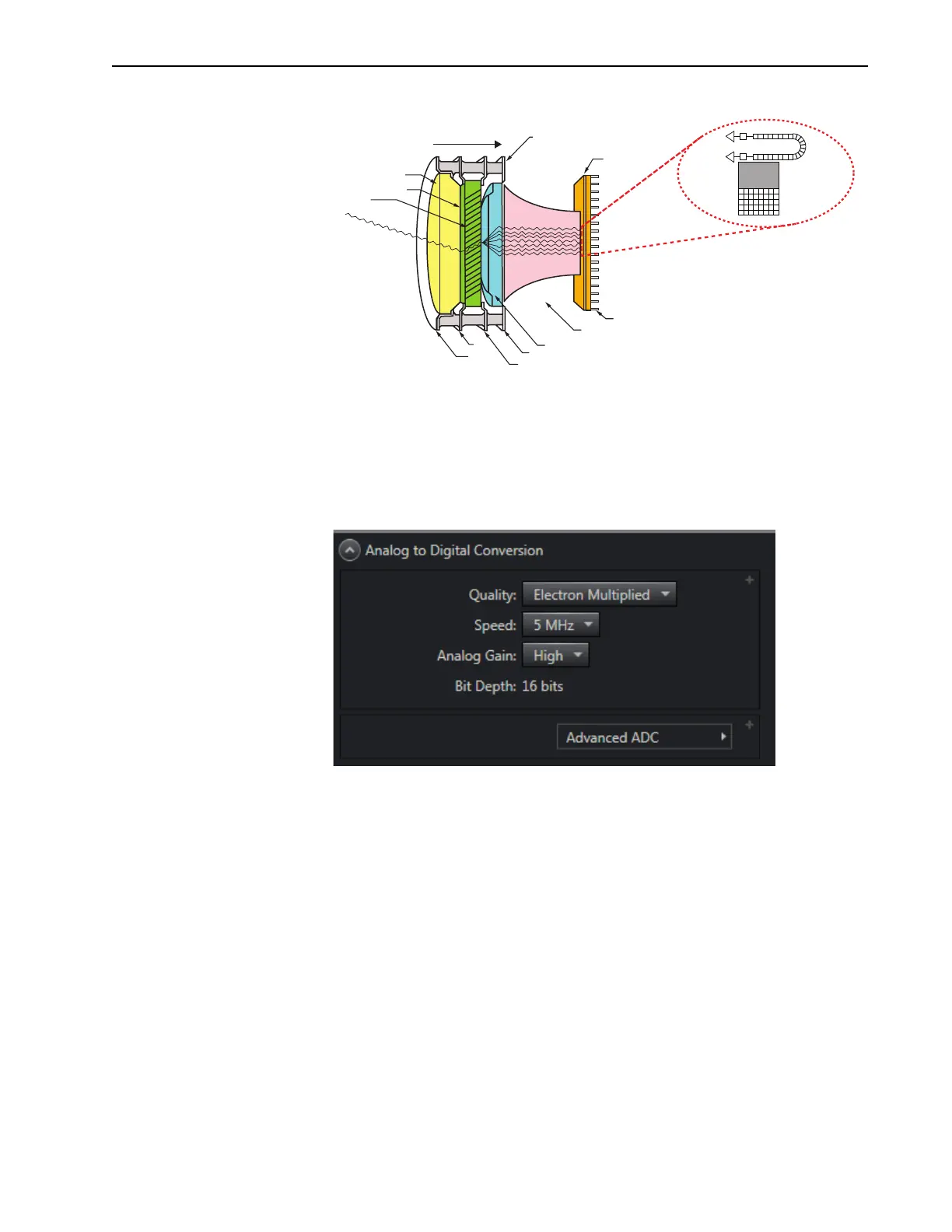

Figure 14-2: Typical emICCD Hardware Stackup
14.1.1 Enabling EM
Electron Multiplication is enabled on the Analog to Digital Conversion expander by
selecting
Electron Multiplied from within the Quality field. See Figure 14-3.
Figure 14-3: Enabling Electron Multiplication
Once enabled, several additional configuration options become active which may require
customization based on specific experiment requirements.
emICCD
-200 V
0 V
600 V - 900 V
6 kV
Phosphor (Fluorescent Screen)
Fiberoptic Bundle
Incident Light
EMCCD Array
Microchannel Plate (MCP)
Photocathode
Input Window
Input Window
Intensifier Gated On
Electron Flow:
+
Electrical Connection Rings
-
4411-0139_0119
4411-0139_0120
