Princeton Instruments PI-MAX4 - B.6 CoolCUBEII Circulator

286 PI-MAX
®
4 System Manual Issue 9
B.6 CoolCUBE
II
Circulator

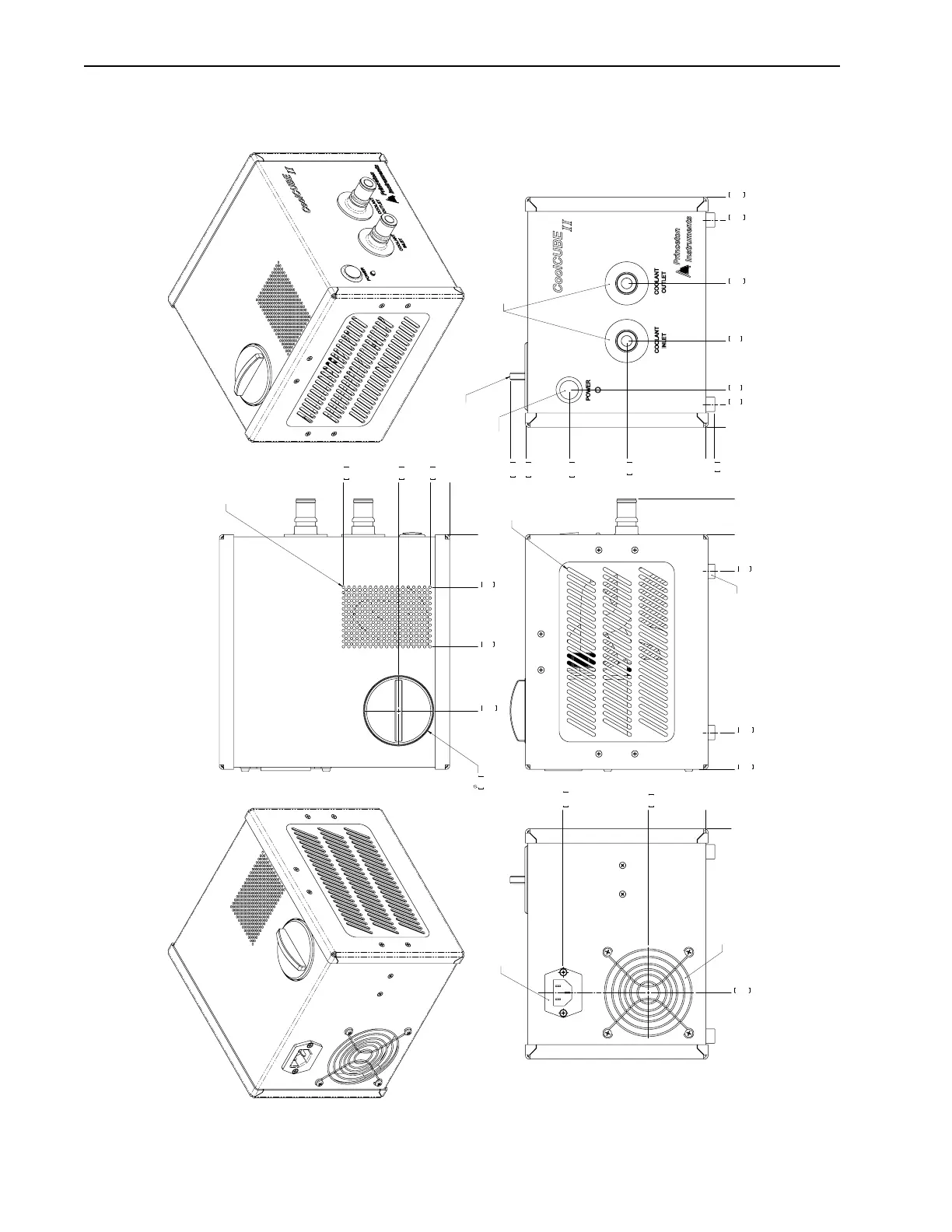

Figure B-12: Outline Drawing: CoolCUBE
II
Circulator
0
1.245
8.150
207.0
1.28
32.4
6.88
174.6
4X RUBBER FOOT
DO NOT BLOCK AIR INTAKE SLOTS BOTH SIDES
0
0.30
7.5
2.75 69.9
4.75
120.7
6.26
159.1
6.80
172.7
0
1.30
33.0
3.00
76.2
5.00
127.0
8.00
203.2
0.80
20.3
7.20
182.9
NO SPILL QUICK DISCONNECT
SHUT-OFF FITTINGS
POWER ON/OFF
SWITCH
RESERVOIR CAP TO BE REMOVED TO REPLENISH
COOLANT. REFER TO OWNERS MANUAL FOR PROPER
COOLANT REFILL PROCEDURE.
2.45
62.2
0
6.12
155.3
1.83
46.4
3.89
98.9
0
0.68 17.3 1.77 45.0 3.69 93.7
DO NOT COVER VENTILATION HOLES
0
2.00 50.8
4.97
126.3
0
5.70
144.7
EXAUST OPENING
AC RECEPTACLE
4411-0139_0159
