58 PI-MAX
®
4 System Manual Issue 9
10. Configure the following parameters:
• CCD Readout: Use Full Chip;
• Intensifier Gain: 1;
• Gate Mode: Selected.
See Figure 4-10.

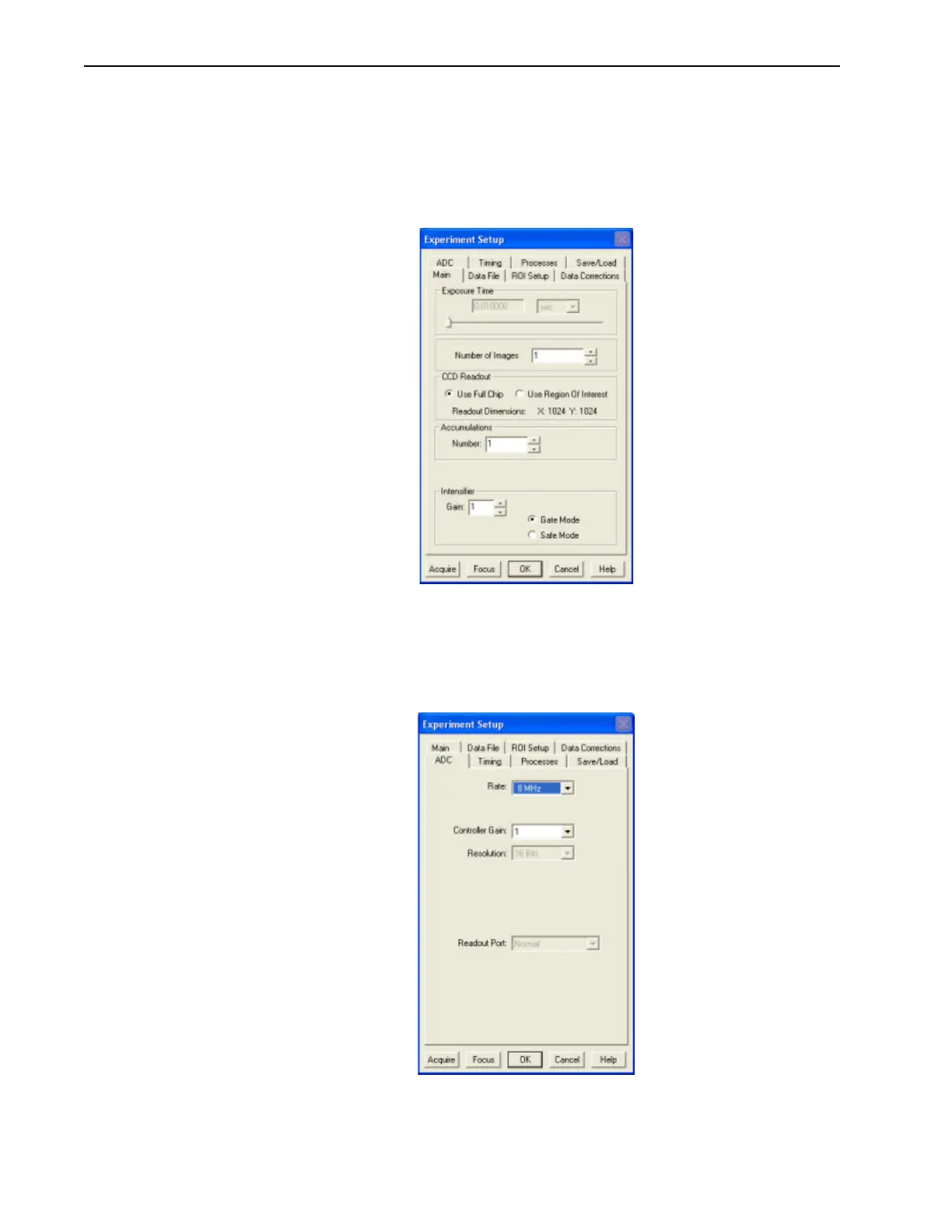

Figure 4-10: Typical Experiment Setup Dialog: Main Tab
11.
Click on the ADC tab.
12. From the Rate: pull-down list of camera-specific frequencies, select a frequency that is
closest to mid-range.
See Figure 4-11.
Figure 4-11: Typical Experiment Setup Dialog: ADC Tab
4411-0139_0013
4411-0139_0014
