Chapter 13 PI-MAX4: 1024i-RF and RF Modulation 207
Depending on the total number of points within the table, LightField will raise an
Experiment Warning if the number of frames that has been configured on the
Common Acquisition Settings expander is:
• Less than the total number of points in the table; or
• Not a whole multiple of the total number of points in the table.
The Experiment Warning will be dismissed when the number of frames is changed
and satisfies the above criteria.
Although the Experiment Warning will not prevent an
experiment from being run, depending on the settings, incomplete
data may be collected/returned.
For example, if the total number of points in the table is 15, and
the number of frames is 7, data will be collected/returned only for
the first 7 points within the table, leaving 8 data points untested.

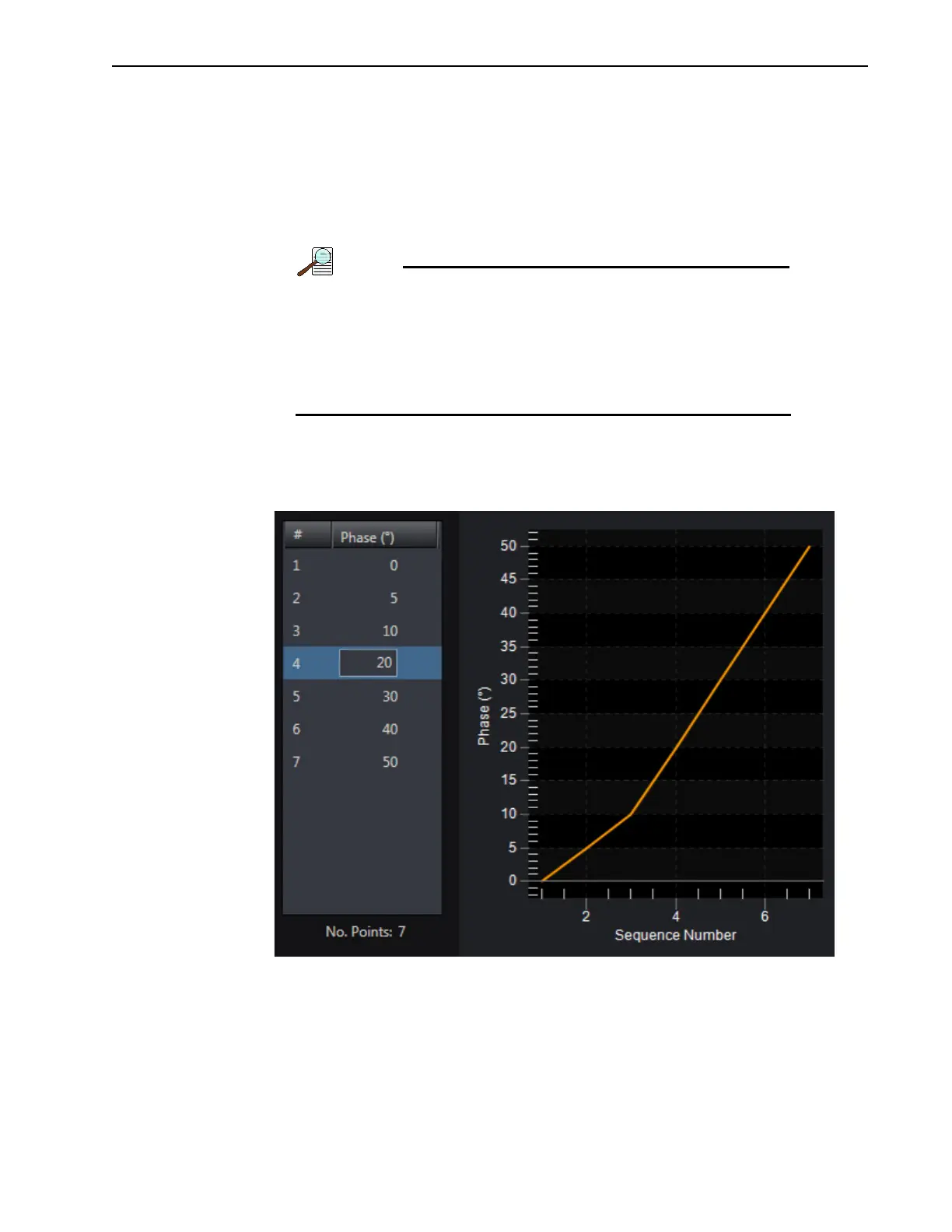

k. The shape of the resulting modulation phase curve is displayed to the right of the
table. Figure 13-6 illustrates a typical curve.
Figure 13-6: Typical Modulation Phase Curve
