Chapter 6 LightField and Gated Operation 109
7. On the Regions of Interest expander, select Full Sensor. See Figure 6-9.

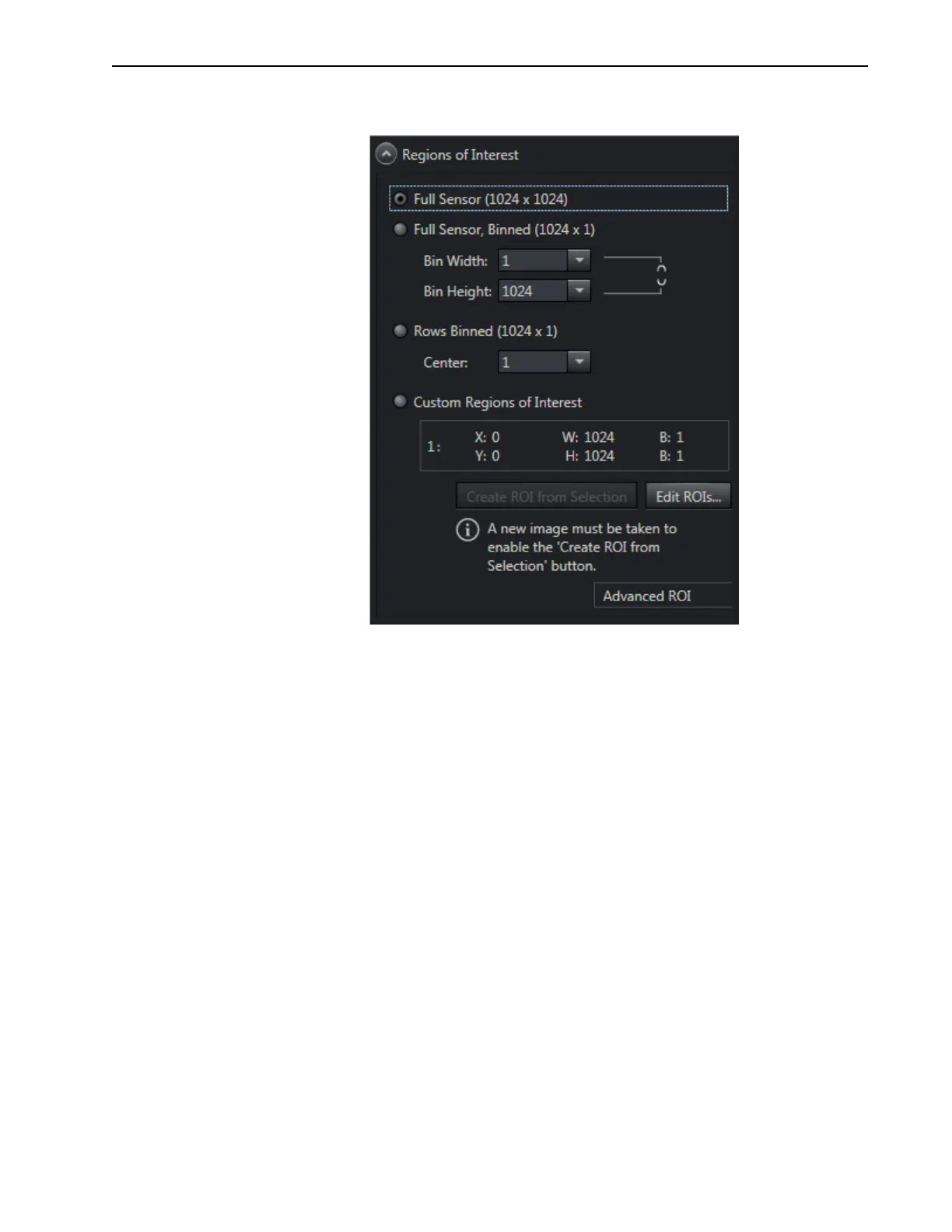

Figure 6-9: Typical Regions of Interest Expander: Full Sensor
8.
Verify that the camera is operating and is properly focused by running it in “Internal
Trigger” mode.
Perform the following procedure to run in
Internal Trigger mode to verify camera
focus:
a. On the Common Acquisition Settings expander, within the Intensifier section,
configure the following parameters:
• Enable Intensifier: check the associated box;
• Intensifier Gain: Enter a value between 1 and 100, inclusive.
See Figure 6-10.
