Princeton Instruments PI-MAX4 - Figure 14-7: Typical EM Gain Configuration Parameters: Manual Mode

222 PI-MAX
®
4 System Manual Issue 9
•EM Gain is configured on the Analog to Digital Conversion expander.
Figure 14-7 shows the
EM Gain configuration parameters available for Manual
Mode
.

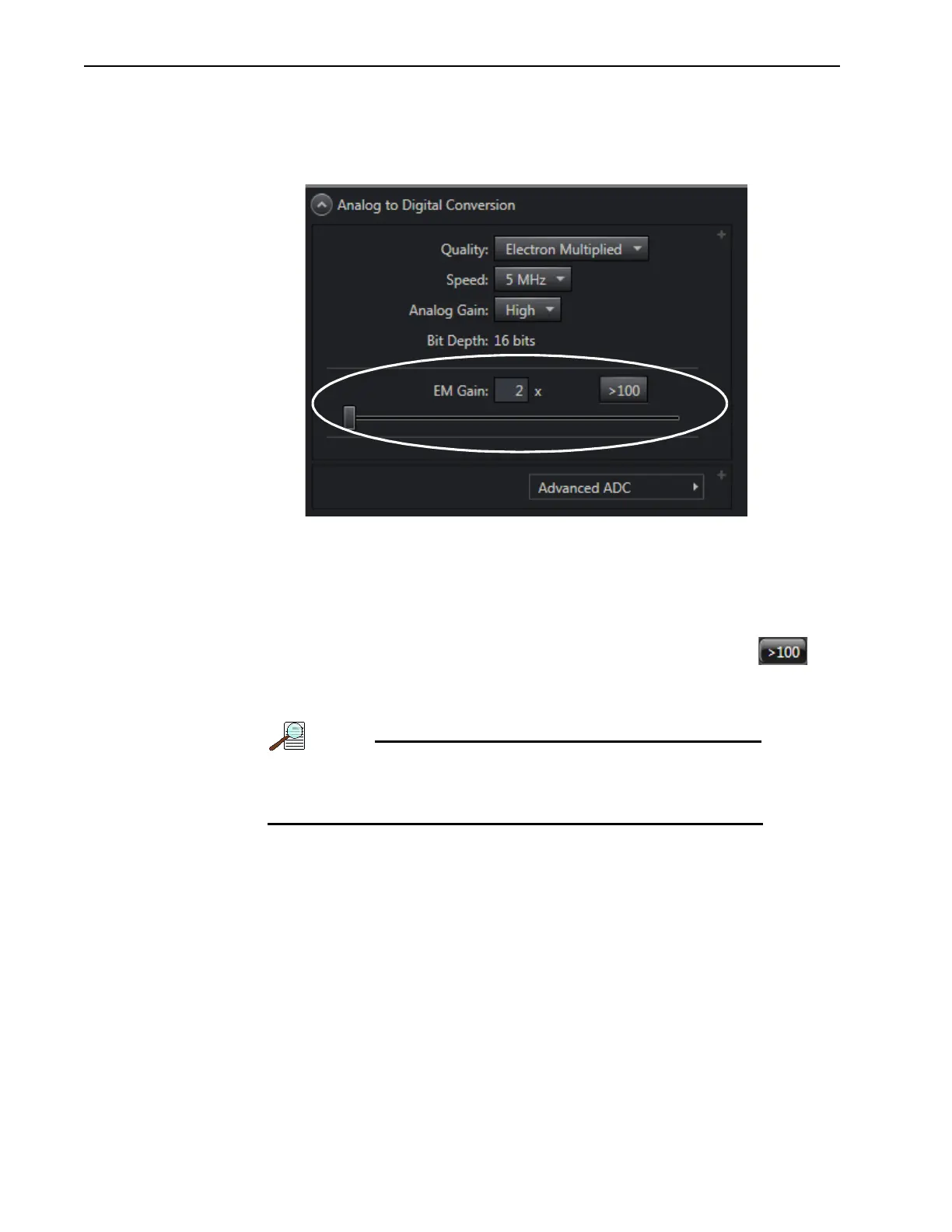

Figure 14-7: Typical EM Gain Configuration Parameters: Manual Mode
The desired EM Gain can be specified manually using the keyboard, or adjusted
using the slider bar located just below the field.
Recommended
EM Gain values are whole numbers from 1x to 100x, inclusive,
which should be sufficient for most applications.
If, however, an experiment requires an
EM Gain in excess of 100x, the
button must first be selected in order to expand the slider bar’s range to a maximum
gain of 1000x.
NOTE:
Gain values greater than 100 may be manually entered into the
EM Gain field using the keyboard without first selecting the
>100 button.
4411-0139_0123
