240 PI-MAX
®
4 System Manual Issue 9
3. Return to the Experiment Settings panel and, if necessary, open the Common
Acquisition Settings
expander. From here, the following features/options may be
enabled/disabled:
• Time Stamping
— Exposure Started
— Exposure Ended
• Frame Tracking
See Figure 14-24.

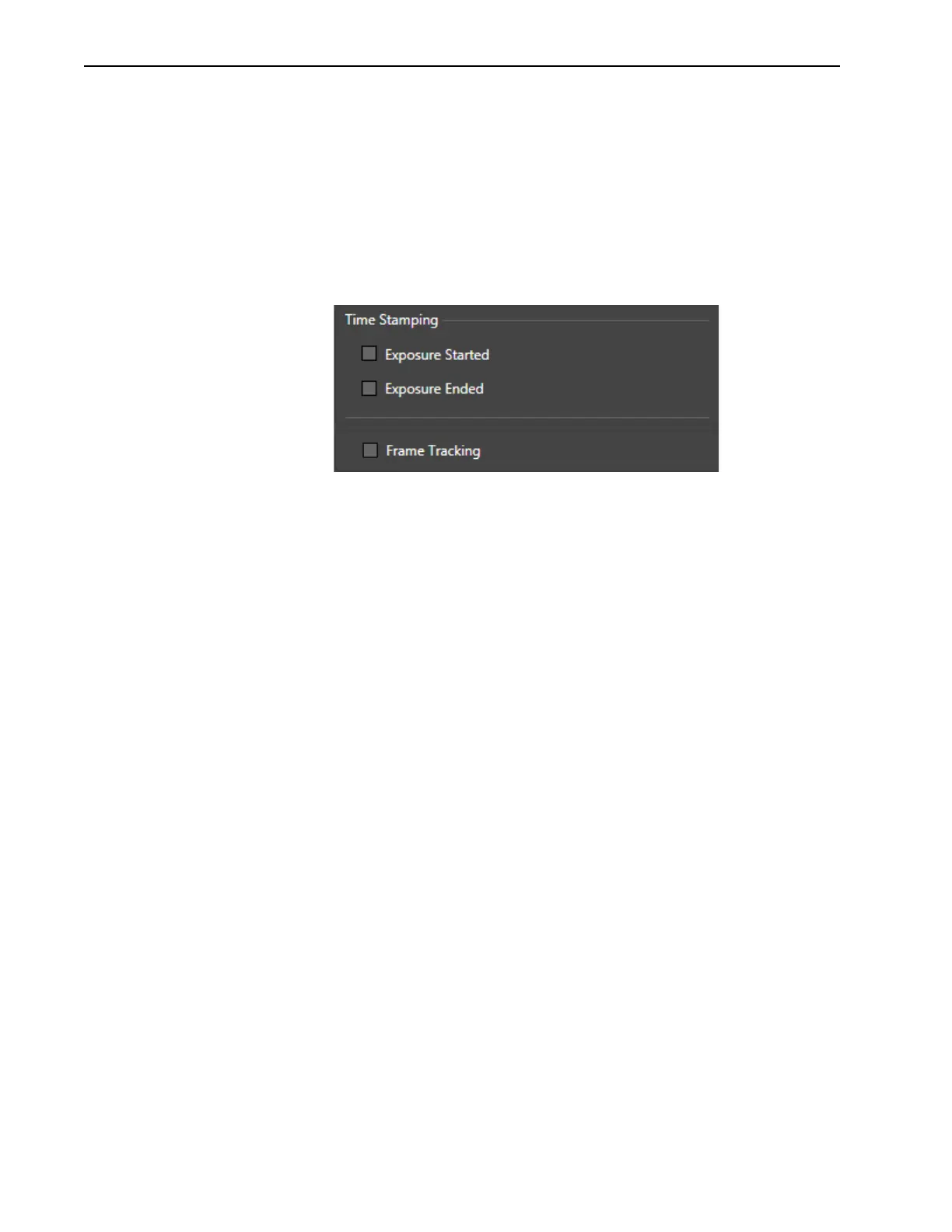

Figure 14-24:Typical Configuration Options: Time Stamping, Frame Tracking
4.
Specify the number of Frames to Save (e.g., 50.)
5. Click on the Acquire button to acquire the frame set.
4411-0139_0139
