c. Click on the Gating tab to configure the following parameters:
• Mode: Sequential [radio button];
• Bracket Pulsing: OFF [available for Gen II Intensifiers ONLY].
See Figure 7-16.

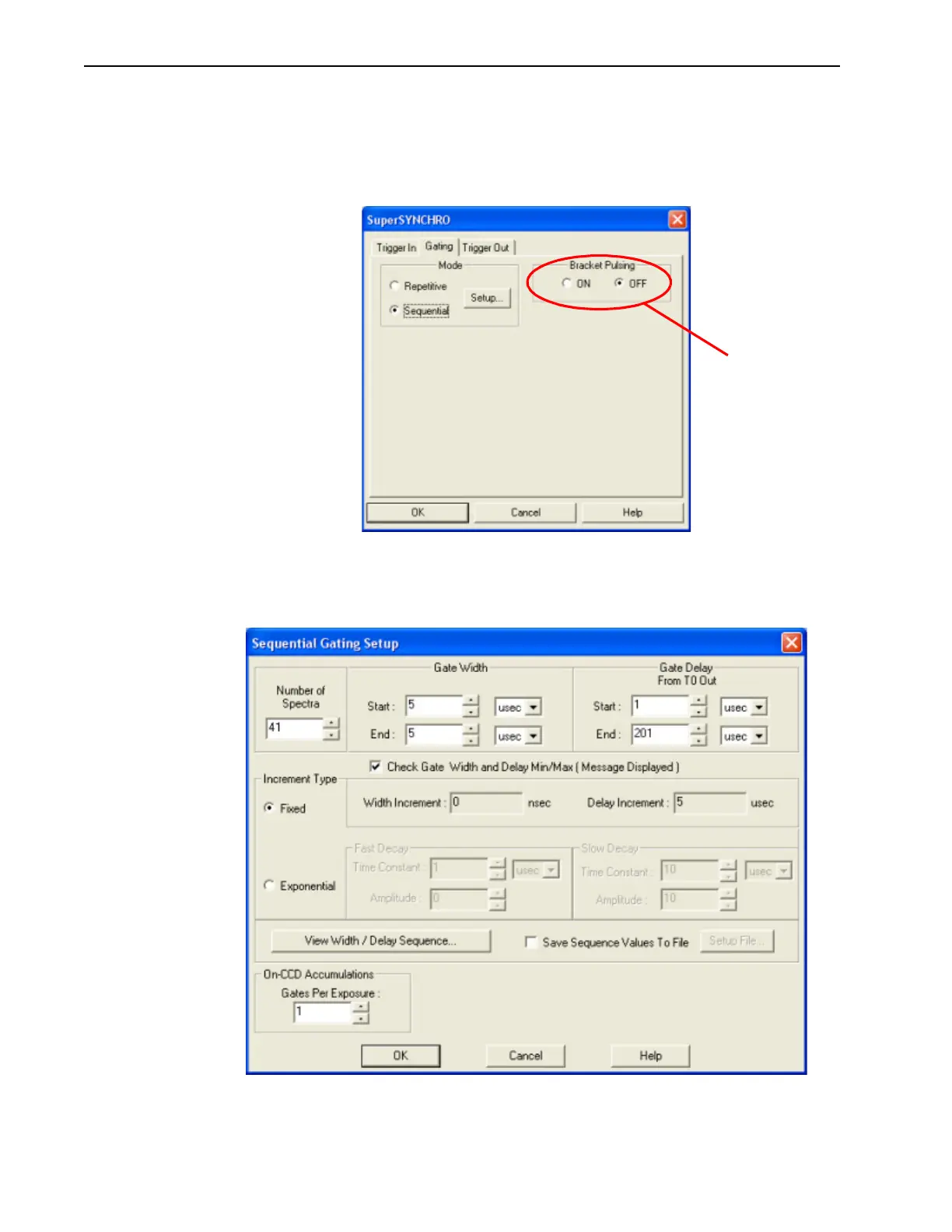

Figure 7-16: Typical SuperSYNCHRO Dialog: Gating Tab
d.
Click the Setup … button to display the Sequential Gating Setup dialog similar to
that shown in Figure 7-17.
Figure 7-17: Typical Sequential Gating Setup Dialog
4411-0139_0056
AVAILABLE ONLY FOR
GEN II INTENSIFIERS
4411-0139_0057
