Scalar i6000 Installation Guide 109

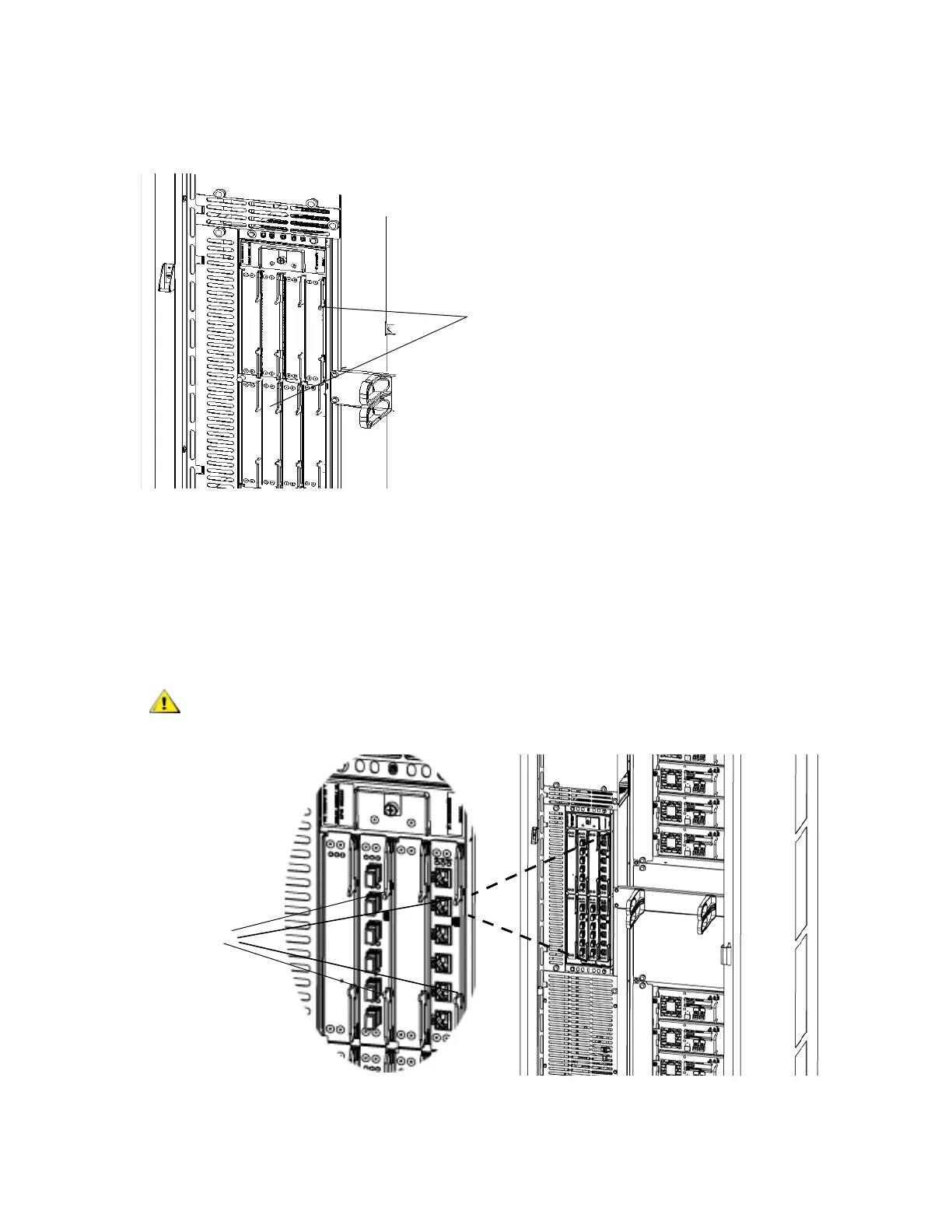

4 Remove the necessary number of cover plates from the I/O management unit by pressing to the left and
pulling out on the latchhooks.
Either discard the unused cover plate or leave it with the customer for future use.
5 Remove the blade from the anti-static bag.
6 Press up and out to open the latchhooks on each side of the blade.
7 Evenly apply pressure to both sides of the blade and slide it into the I/O management unit until the
latchhooks begin to move towards the middle of the blade. Push the latchhooks towards the middle of
the blade and into the lock position. You will feel the blade pins connect with the I/O management unit’s
backplane as the blade locks into place.
Forcing the blade into the bay can cause the pins to bend.
