Scalar i6000 Installation Guide 65
Routing and Connecting Module Cables
Required tools: Phillips screwdriver

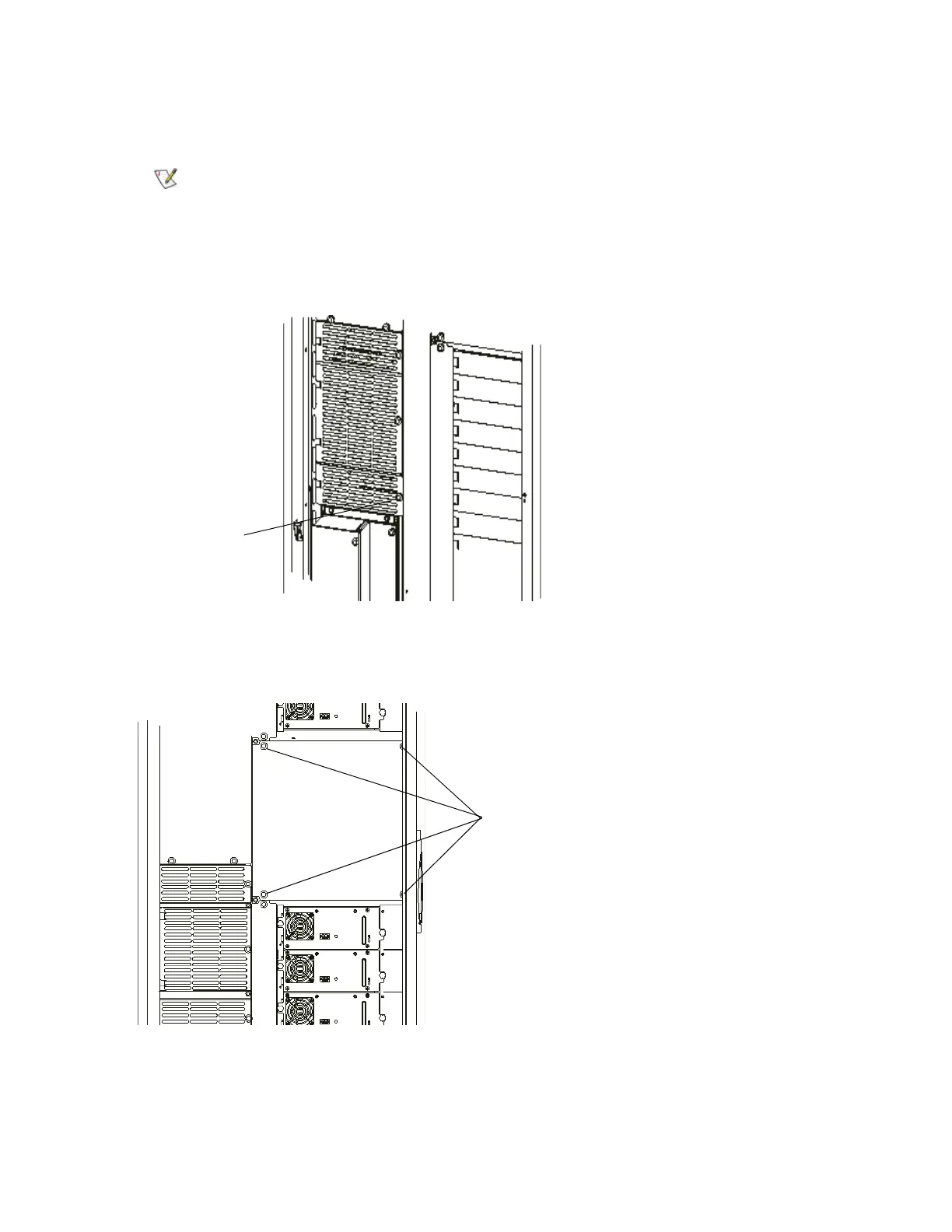

1 On the back of the existing control module or last expansion module, do the following:
a. Loosen the thumbscrew on the LBX/IEX cover plate and remove the plate.
b. Use a #2 Phillips screwdriver to remove the four thumbscrews that retain the cover plate
between the top and bottom drive positions.
The cables will be preinstalled on the LBX board in the expansion modules.
You must route them through the hole in the bulkhead to either the control
module or previous expansion module.
LBX/IEX cover
plate thumbscrew
