64 Installing a Multi-Module Library

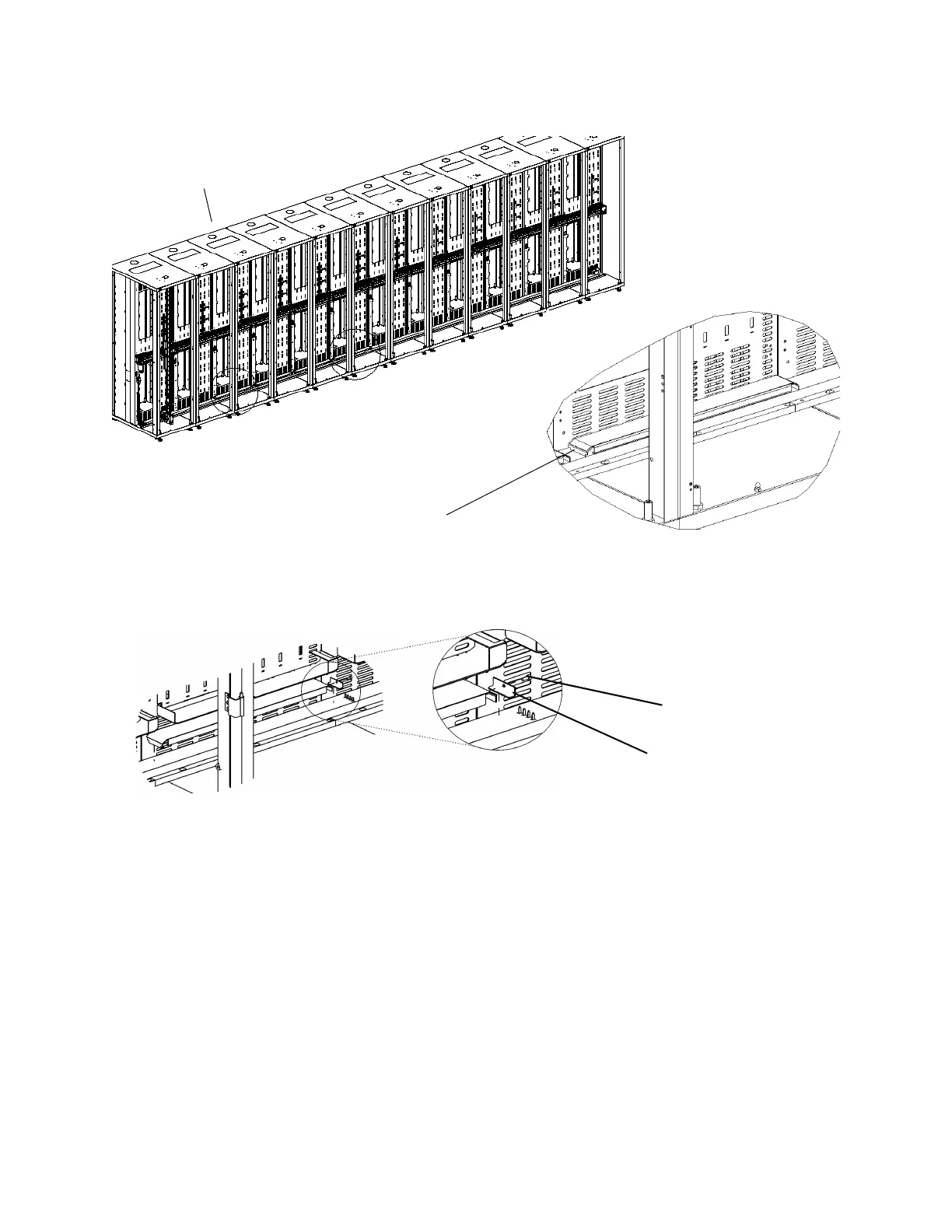

3 Place the trough between the top and bottom portions of the X-axis chain. Clip the end of the trough
over the bottom chain of the X-axis cable in the middle of the third module (second expansion module).
4 Lay the trough flat on the X-axis cable. Clip the end of the trough that was removed onto the cable and
attach it using the 3 mm hex wrench.
expansion module in
position 3
into a lower link of the X-axis cable
hook the clipped end of the trough
clip that was removed
3 mm hex screw
