Scalar i6000 Installation Guide 347

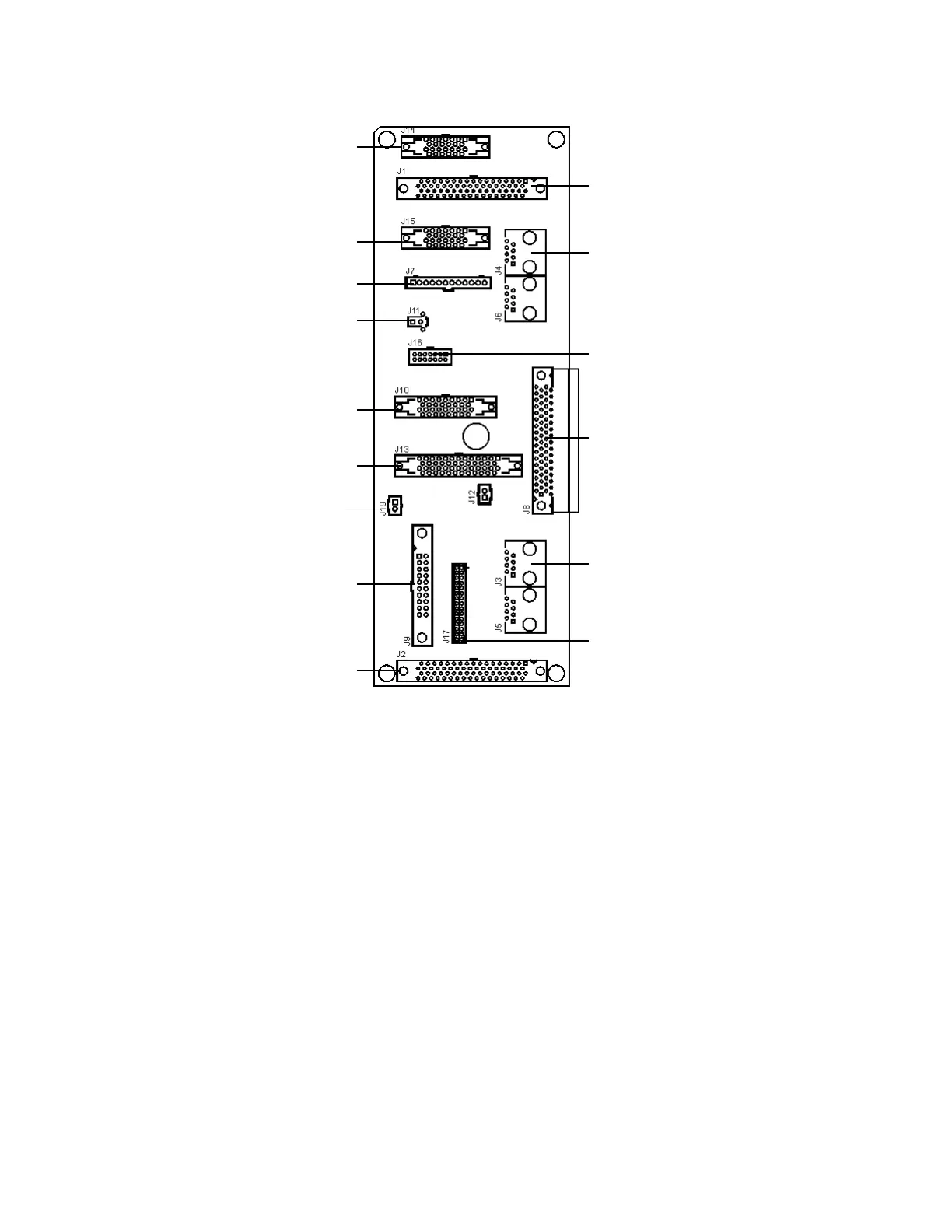

Figure 37 LBX Connections (LBX2 Gen 2)

connector: J14

plug: W3 to lower drive cluster

connector: J1

plug: W1 to BPI or

from previous LBX

connector: J4

plug: W2 to BPI or

from previous LBX

connector: J8

plug: IEX board

connector: J15

plug: W3 to upper drive cluster

connector: J11

connector: J7

plug: W6 to I/E station

plug: W15 to door interlock

connector: J10

plug: W11 to I/O management unit;

connector: J16

plug: W16 to I/O management unit

connector: J13

plug: W7 to I/O management unit;

connector: J9

plug: W5 to power enclosure

connector: J2

plug: W1 to LBX extended

connector: J3

plug: W2 to J4 of next LBX

connector: J17

plug: LBX terminator

CAN interface

Ethernet

connector: J19

plug: aisle light
