Scalar i6000 Installation Guide 49
Verifying Accessor Assembly Alignment
1 Verify that the accessor assembly is aligned correctly as follows
a. Position the front edge of the Y-drive mount so that it is aligned with the scribe mark on the lower
left end of the control module’s upper and lower X-axis rail.
b. Verify that the upper X-axis bearing is within one mm of the scribe mark on the upper X-axis rail.

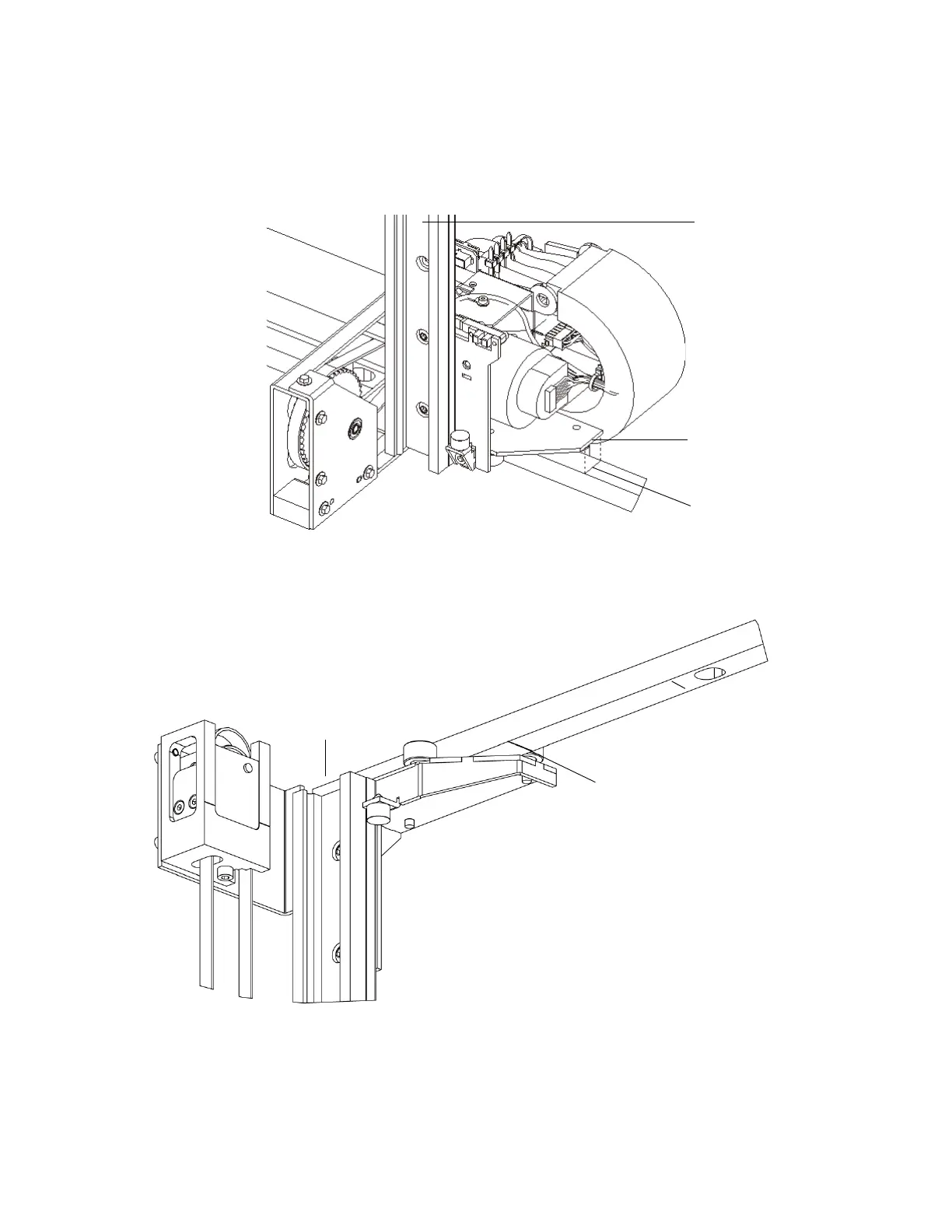

Y-axis rail
scribe mark
on lower X-axis rail
front edge of
Y-drive mount
