Scalar i6000 Installation Guide 63
Installing the X-Axis Chain Trough
Required tools: 2.5 mm hex wrench
1 Locate the X-axis cable trough (part number 3-01740-01).
2 Use the 2.5 mm hex wrench to remove the clip from the end of the trough.
The X-axis chain trough is installed only in 7- 12 module configurations. Skip
this procedure if the configuration you are installing has six or fewer modules.
Center the trough in modules 3, 4, 5, and 6 with a slight left offset.

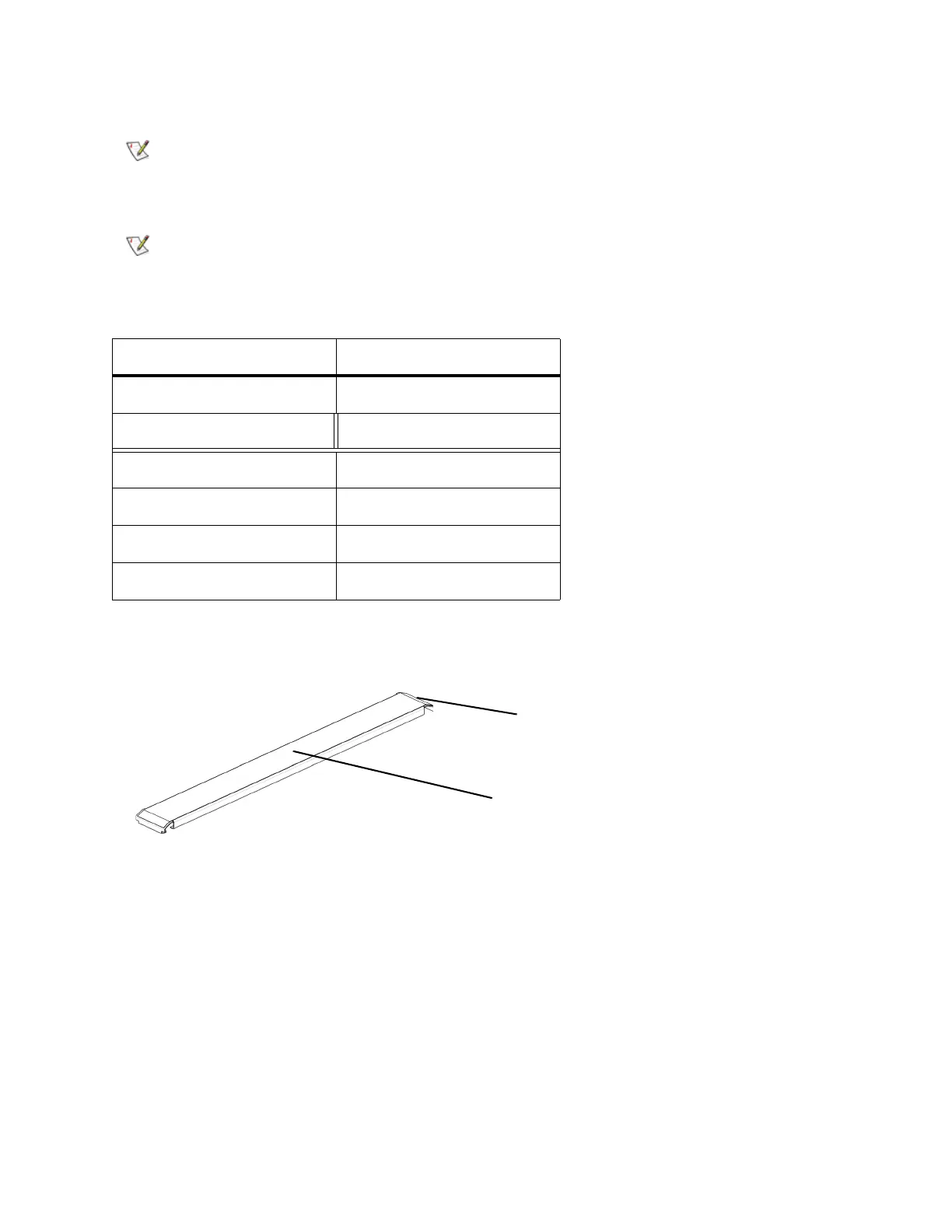

Library Configuration Trough Locations
CM + 6 EM module 3
CM + 7 EM module 3
CM + 8 EM module 3 and 4
CM + 9 EM module 3, 4 and 5
CM + 10 EM module 3, 4, and 5
CM + 11 EM module 3, 4, 5, and 6
cable trough
2.5 mm hex screw
