Quantum Scalar i6000 - Removing the X-Axis Chain Assembly

82 Installing a Multi-Module Library
Removing the X-Axis Chain Assembly

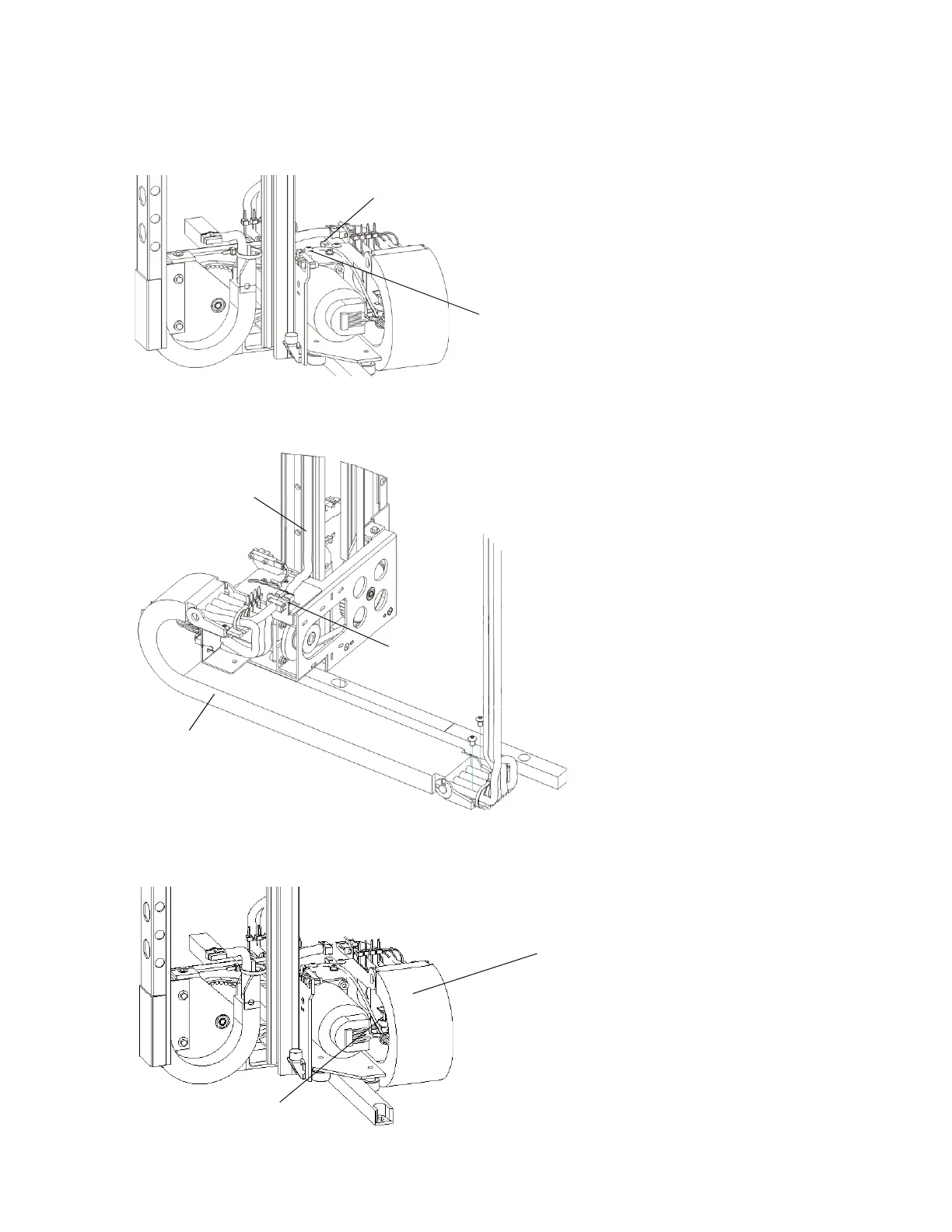

1 On the top of the X-axis chain assembly, release the Y-axis home sensor cable by flipping up the hold-
down.
2 Disconnect the Y-axis chain (W9) from the X-axis chain assembly (W8).
3 Disconnect the Y-axis home/motor cable from the X-axis chain assembly (W8).
hold down
Y-axis home sensor cable
X-axis chain
assembly (W8)
connector
Y-axis chain
assembly (W9)
X-axis chain
assembly (W8)
Y-axis
motor cable
