Scalar i6000 Installation Guide 53

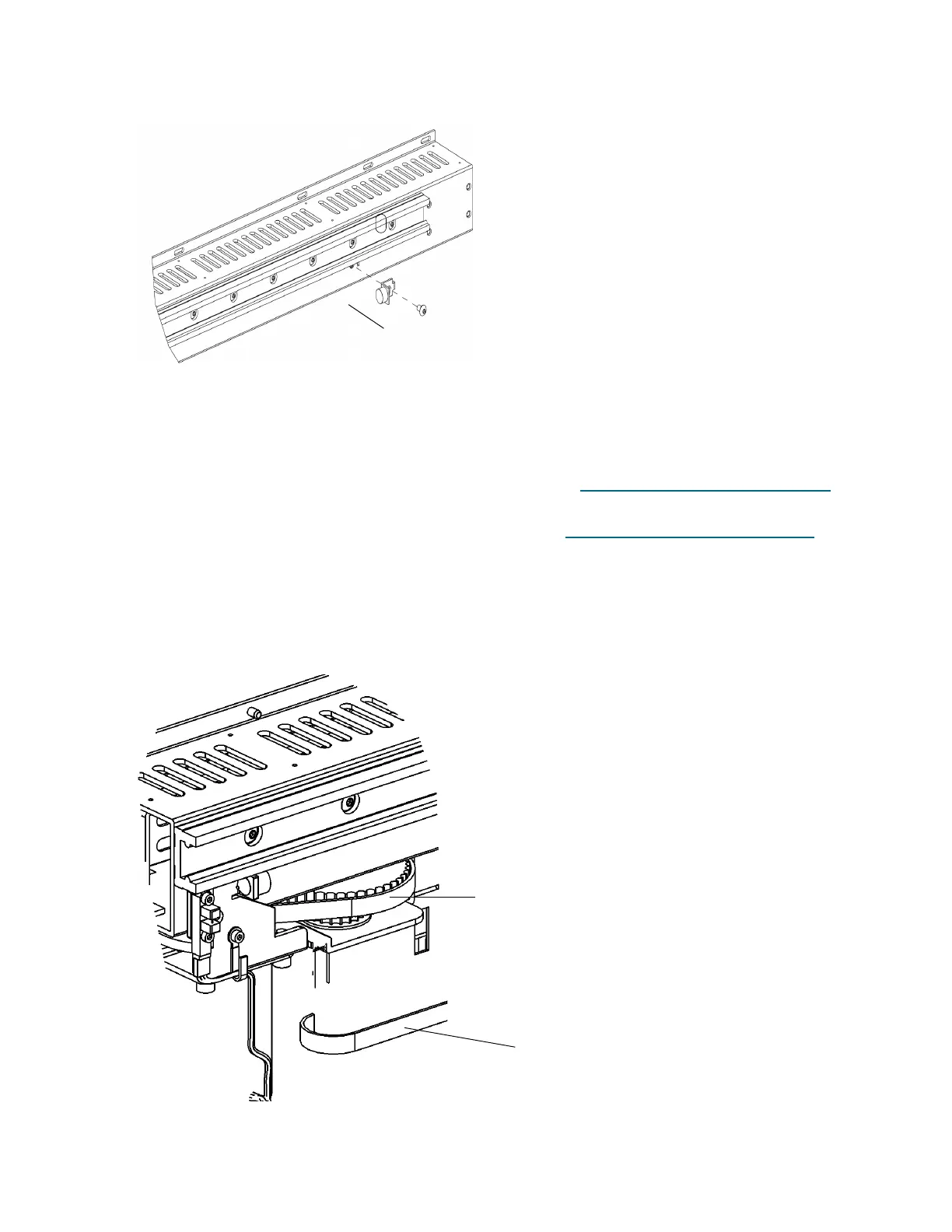

5 Use a 3 mm hex wrench to attach the hard stop to the substrate below the X-axis center rail.
Installing the X-Axis Belt
Determine the library configuration requirements:
If the library configuration will be less than eight modules, follow the Eight Modules or Less Configuration
on page 53.
If the library configuration will be nine modules or more, follow the Nine Modules or More Configuration
on
page 56.
Tools required: 2.5 mm hex wrench, 4 mm hex wrench, 3 mm hex wrench
Eight Modules or Less Configuration
1 Thread the belt around the back side of the X-axis pulley assembly.
belt
thread belt through the
back of the pulley assembly
To Next Page
