54 Installing a Multi-Module Library

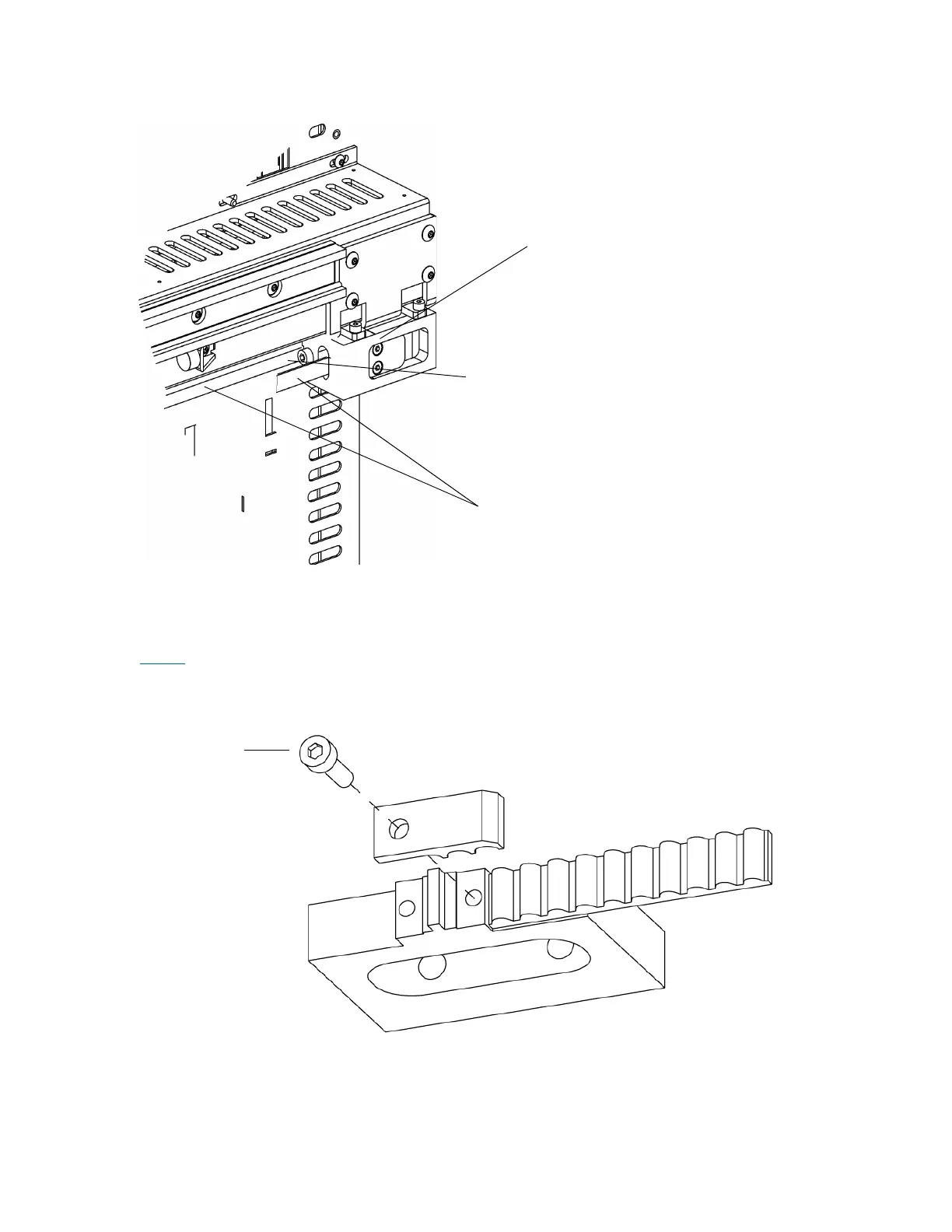

2 Thread the end of the belt through the back opening in the tensioner.
3 Locate the X-axis belt clamp.
The X-axis belt clamp was removed as part of the disassembly procedure on an existing library. See
Step 5
on page 79. The clamp is connected to the X-axis carriage on a new library.
4 To attach the belt to the right side of the X-axis belt clamp, use a 2.5 mm hex wrench to tighten the first
screw.
belt
thread belt through opening
tensioner
in the back of the tensioner
