Scalar i6000 Installation Guide 349

LBX Terminator

For information on the LBX board, see LBX Board on page 345. For information on interpreting the LBX

terminator LEDs, see Interpreting LBX Terminator LEDs

on page 362

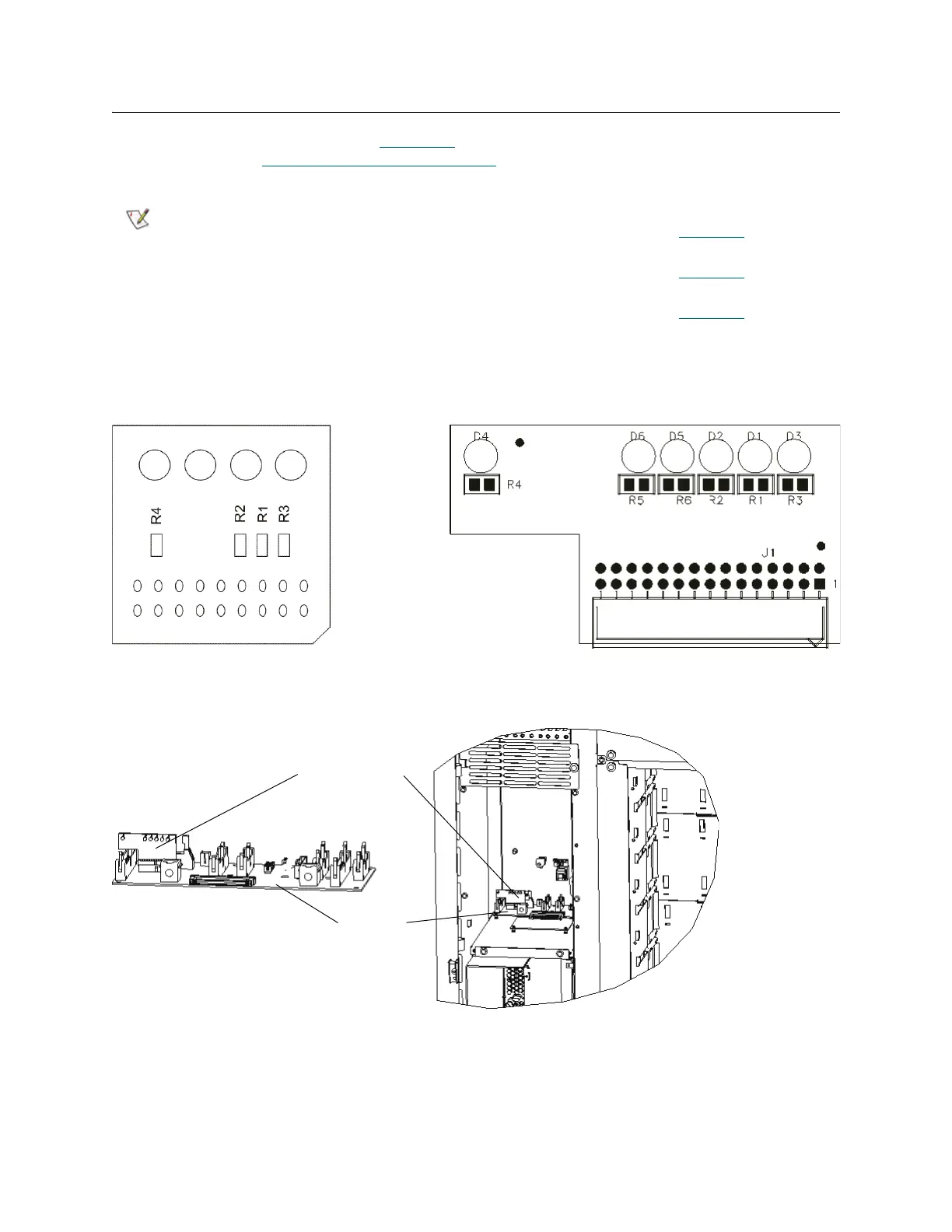

Figure 39 Comparison of LBX Terminator Versions

Figure 40 LBX Board and Terminator Installed

Note

• Any LBX board version LBX2 Gen 1 located in the last module in the library

must be terminated using LBX terminator version 01 shown in Figure 39

• Any LBX board version LBX2 Gen 2 located in the last module in the library

must be terminated using LBX terminator version 03 shown in Figure 39

• Any LBX board version LBX2 Gen 3 located in the last module in the library

must be terminated using LBX terminator version 03 shown in Figure 39

Version 01 Version 03

LBX board

LBX terminator
