Scalar i6000 Installation Guide 23

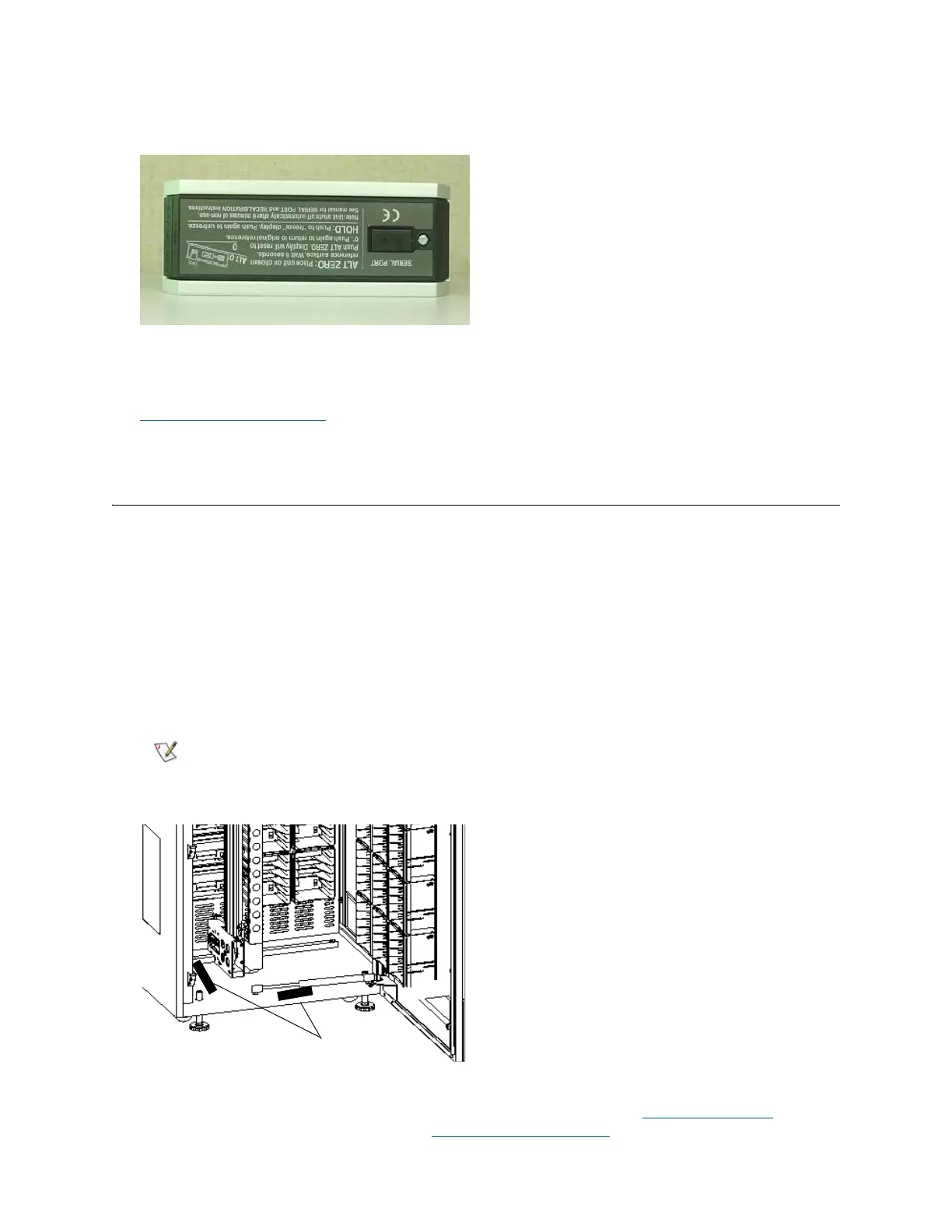

4 Rotate the level end-for-end so the display is facing away from you. The screw on the back of the level
should be on the right side. Be sure to set the level in the exact spot as in Step 1. Wait 10 seconds for
the level to completely settle and take note of the angle on the display.
5 Compare the level display readings that you captured from Steps 1 through 4. If any of the four readings
vary from one another more than 0.1 degree, you must re-calibrate the level. For more information, see
Calibrating the Digital Level
on page 339. If the variance between the readings are within the 0.1 degree
limit, the level is within compliance and is ready to be used.
Verifying Level Condition
Required tools: digital level
1 Verify the module is level front to back and left to right by placing the digital level at the following
locations:
a. Inside the access door
b. Inside the service door
c. On the left side inside the access door
A reading on the digital level that is 0.00 +/- 0.30 is to be considered level.
If the module does not meet the 0.00 +/- 0.30 leveling requirement, go to Additional Leveling
on page
24. If the module is sufficiently level, go to Setting the Leg Lock Nuts
on page 25.
Make sure the digital level is not resting on any frame welds or debris that
would cause an inaccurate reading. To find the small circular frame welds,
run your finger tips over the spot where you are going to place the level
