Scalar i2000 Installation Guide 259
Installing a Control Management Blade
Required tools: ESD strap
1 Open the service door of the module.
2 Attach the ESD strap to your wrist and to an unpainted surface inside the door.
3 Remove the cover plate from bay 2, the CMB slot.
4 Remove the CMB from the protective anti-static bag.
5 Press up and out to open the latchhooks on each side of the CMB.

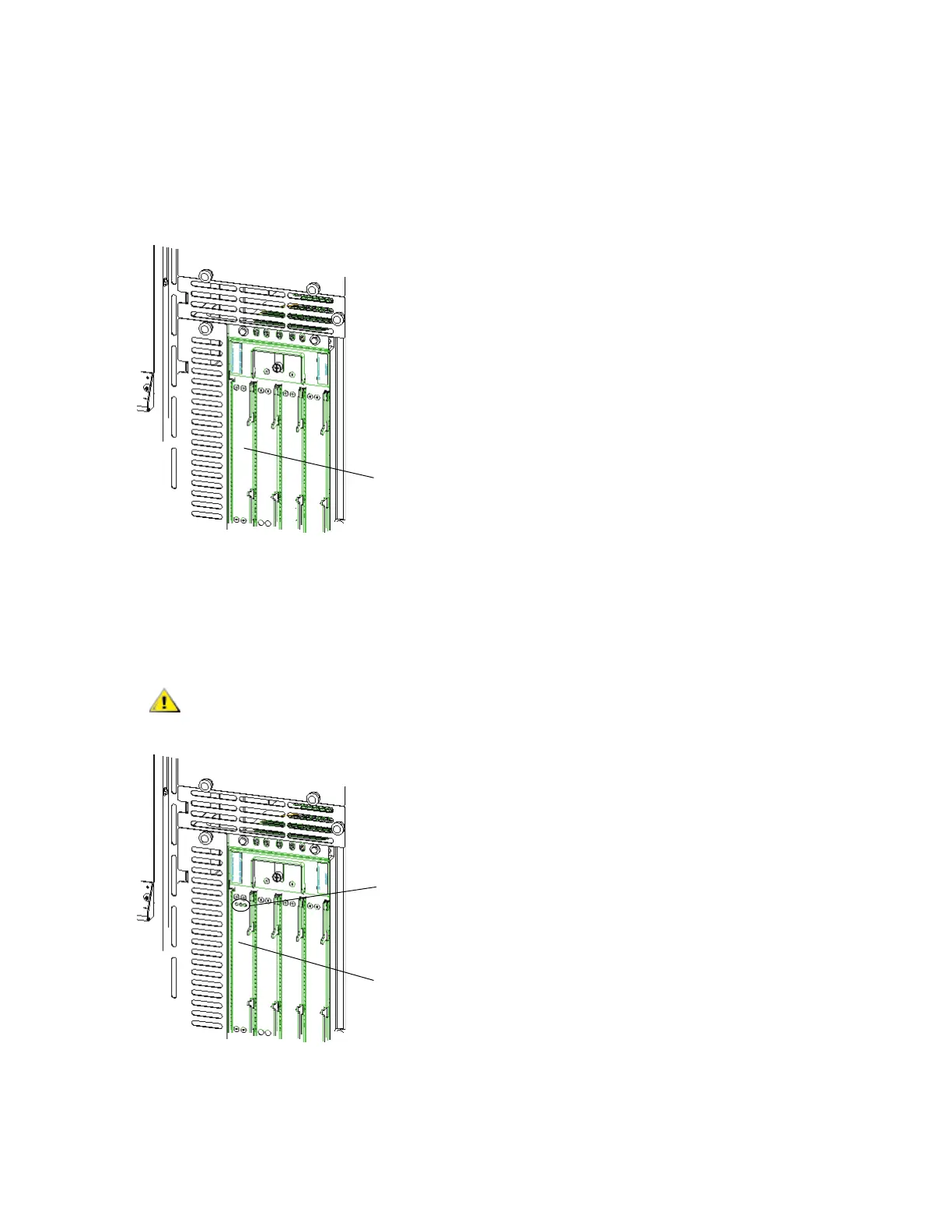

6 Carefully align the CMB with the guide slots in bay 2. The LEDs will be on the top.
Forcing the blade into the bay can cause the pins to bend.
