Scalar i6000 Installation Guide 75
Removing the Right Side Panel from the Last Existing Module
1 On the control module or far right expansion module, remove the storage magazines in sections 1- 5 of
column 4 of rack 1.
This will enable you to access the 2.5 mm hex screws that attach the right side panel to the control
module or last expansion module.
Magazines must be removed in a top-down order. To remove the magazines:
a. Remove any cartridges from the magazine.
b. Starting at the top-most magazine, use both hands to push the magazine upwards until it
unsnaps.
c. Pull the magazine toward you to remove it.

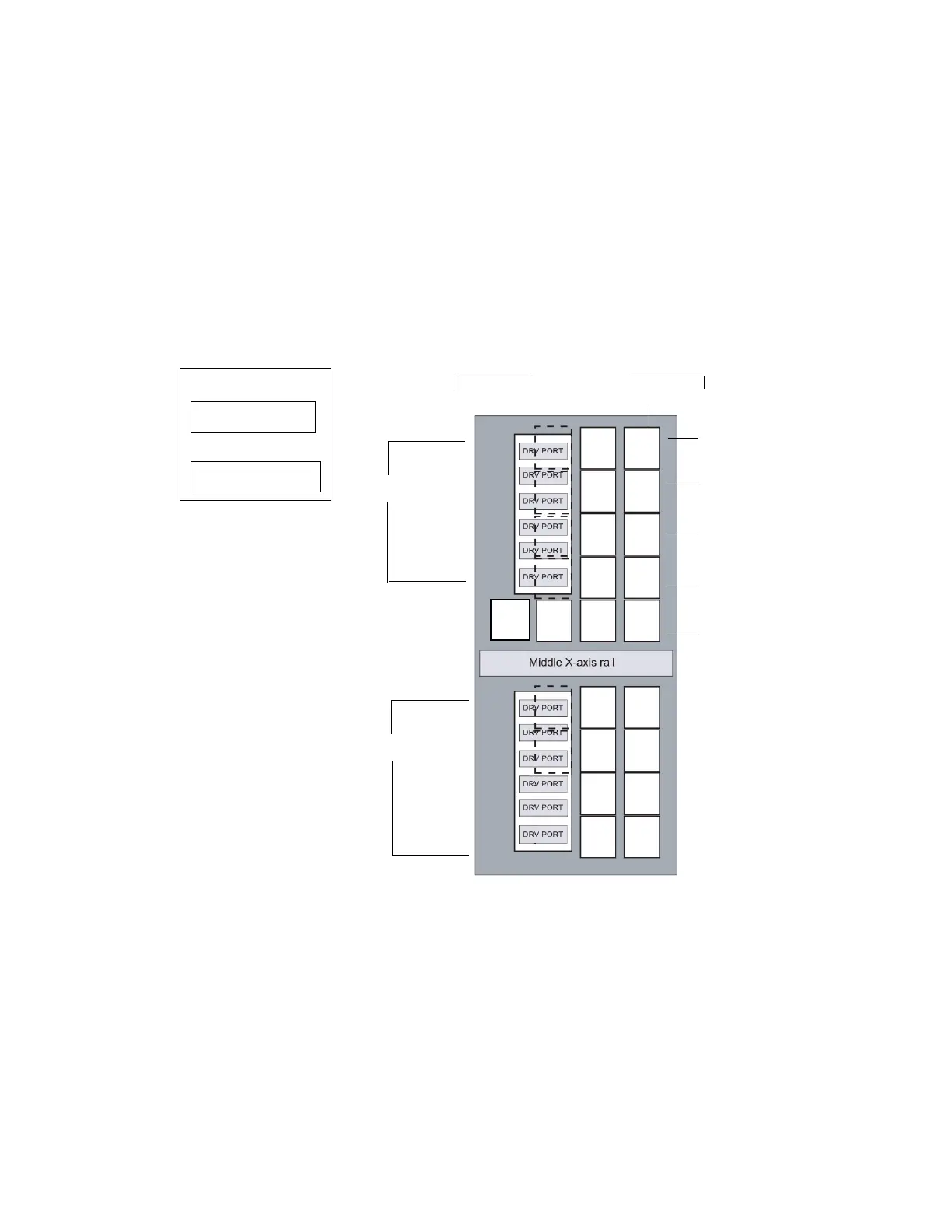

drive cluster
top view of module
rack 1 (back)
rack 2 (front)
column 4
section 1
section 2
section 3
section 4
section 5
rack 1 (back)
drive cluster
