Quantum Scalar i6000 - Figure 49 Locations of LBX Terminator Leds (Version 03); LBX Terminator Version 03 Leds; Table 28 Explanations of LBX Terminator LED States (Version 03)

Scalar i6000 Installation Guide 363
LBX Terminator Version 03 LEDs
The LBX terminator version 03 has six green LEDs that indicate the presence of modules in the library.
Figure 49
shows the locations of the LEDs. Table 28 describes how to interpret LED activity on the LBX
terminator.

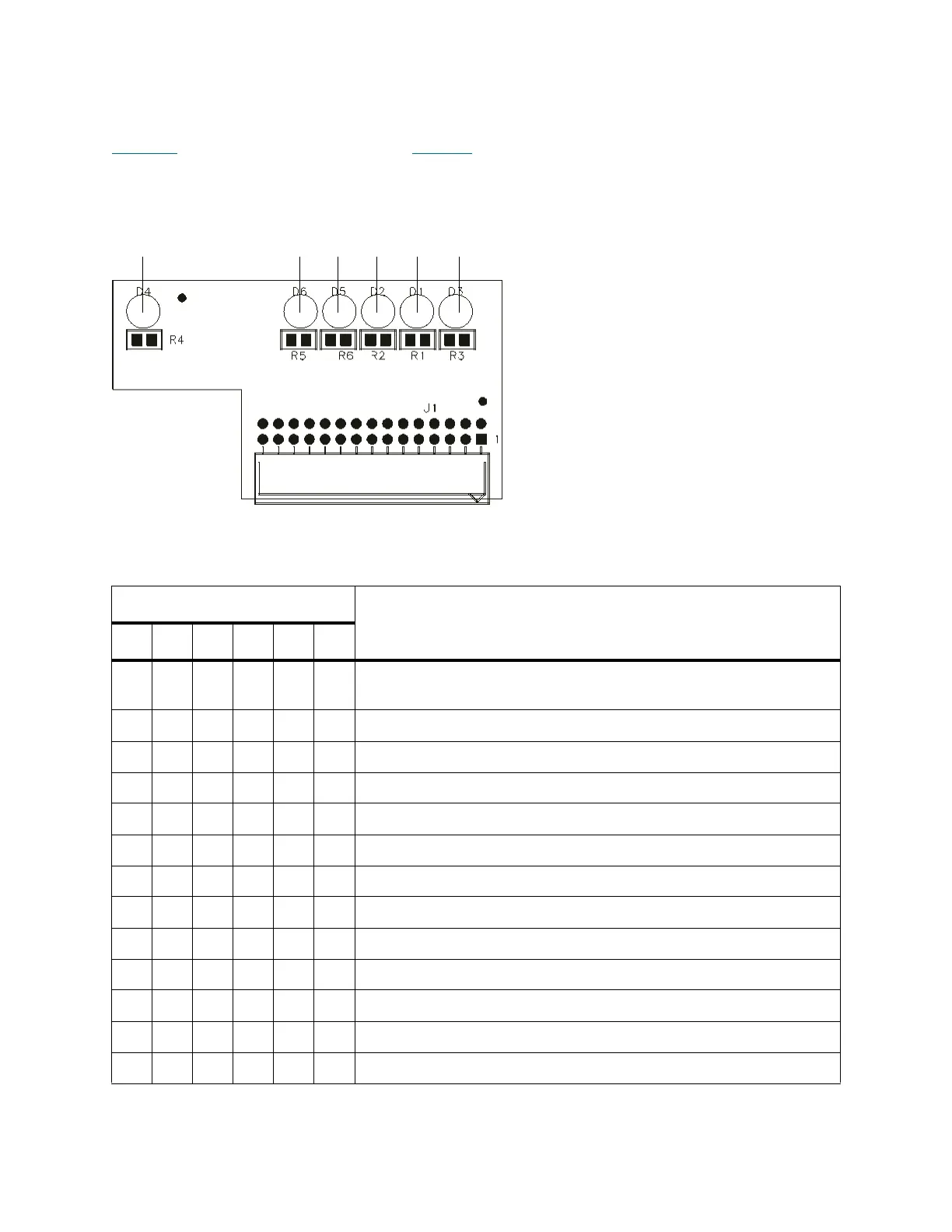

Figure 49 Locations of LBX Terminator LEDs (Version 03)
Table 28 Explanations of LBX Terminator LED States (Version 03)
LED On/Off Combinations
Explanation
123456
Off Off Off Off Off Off Robotics are disabled, the access door is open, or the LBX
terminator is misaligned.
On Off Off Off Off Off The library has one control module and no expansion modules.
On Off Off On Off Off The library has one control module and one expansion module.
On Off Off On On Off The library has one control module and two expansion modules.
On Off Off On On On The library has one control module and three expansion modules.
On Off Off Off On On The library has one control module and four expansion modules.
On Off Off On Off On The library has one control module and five expansion modules.
On Off Off Off On Off The library has one control module and six expansion modules.
On Off Off Off Off On The library has one control module and seven expansion modules.
On On Off Off Off Off The library has one control module and eight expansion modules.
On On Off On Off Off The library has one control module and nine expansion modules.
On On Off On On Off The library has one control module and ten expansion modules.
On On Off On On On The library has one control module and eleven expansion modules.
123456
