40 Installing a Multi-Module Library

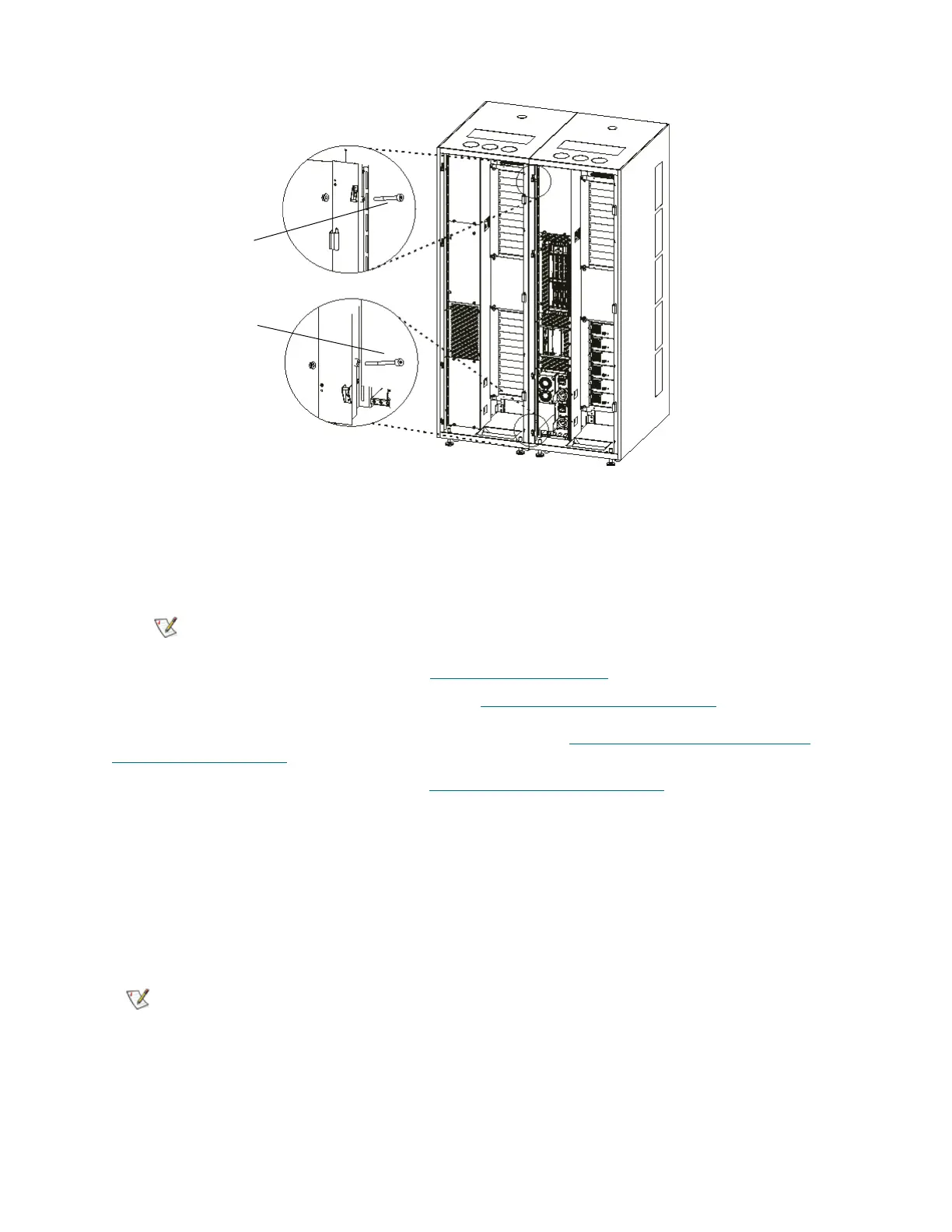

Tightening the Attachment Bolts
Once the bolts have been inserted, tighten the bolts using the 6 mm hex wrench and the 13 mm open end
wrench.
If this is the last new expansion module, go to S
etting the Leg Lock Nuts on page 40.
If you are installing a seventh or eighth module, go to Installing the X-Axis Chain Trough
on page 63.
To install additional expansion modules, repeat these procedures, Installing
Expansion Modules after
Installing the System Unit on page 37, for each additional expansion module.
For libraries with seven or eight modules, see Installing the X-Axis Chain Trough
on page 63.
Setting the Leg Lock Nuts
Required tools: 24 mm open end wrench
1 Verify that all legs are carrying load and that the library does not rock.
2 Use the 24 mm open end wrench to raise all of the leveling leg lock nuts to the top and tighten them
against the welded nut.
Do not overtighten the bolts. Overtightening can damage the vertical frame
post structure.
Ensure that you do not take the leveling legs out of adjustment during this
process.
back upper bolt
back lower bolt
