Scalar i6000 Installation Guide 55

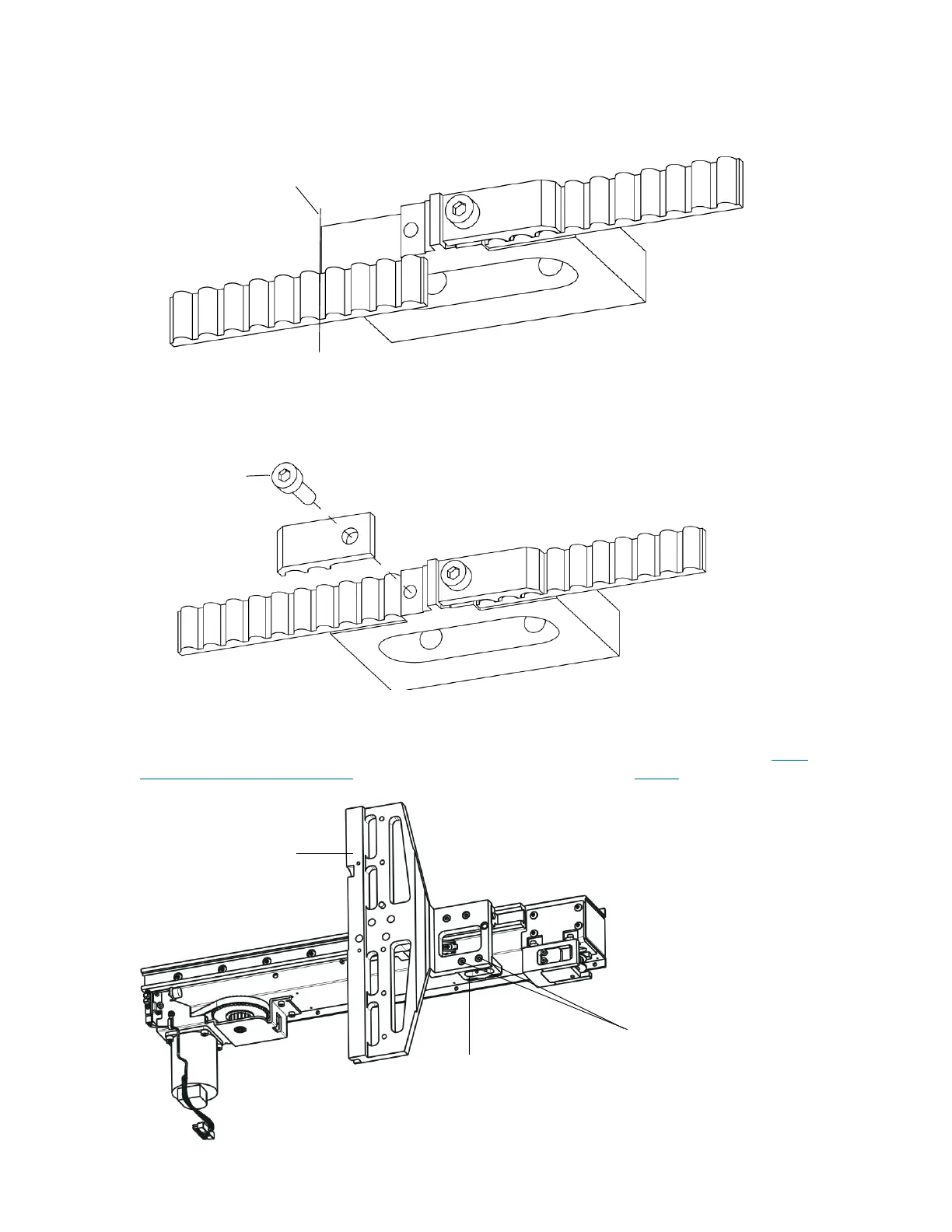

5 Pull the belt tight and mark where it should be cut. You must leave three belt teeth extra on the belt so
it can be attached to the left side of the clamp.-
6 Cut off the excess length from the belt.
7 Insert three teeth of the X-axis belt into the left side of the clamp and tighten the 2.5 mm screw to secure
the belt in place.
8 Secure the belt clamp to the X-axis carriage by installing the two 4 mm screws through the X-axis
carriage into the belt clamp. If your library configuration involves nine or more modules, see Nine
Modules or More Configuration on page 56. Otherwise, proceed to step Step 9 on page 56.
marking point
2.5 mm hex screw
X-axis carriage
4 mm belt clamp
belt clamp
bracket screws
