52 Installing a Multi-Module Library

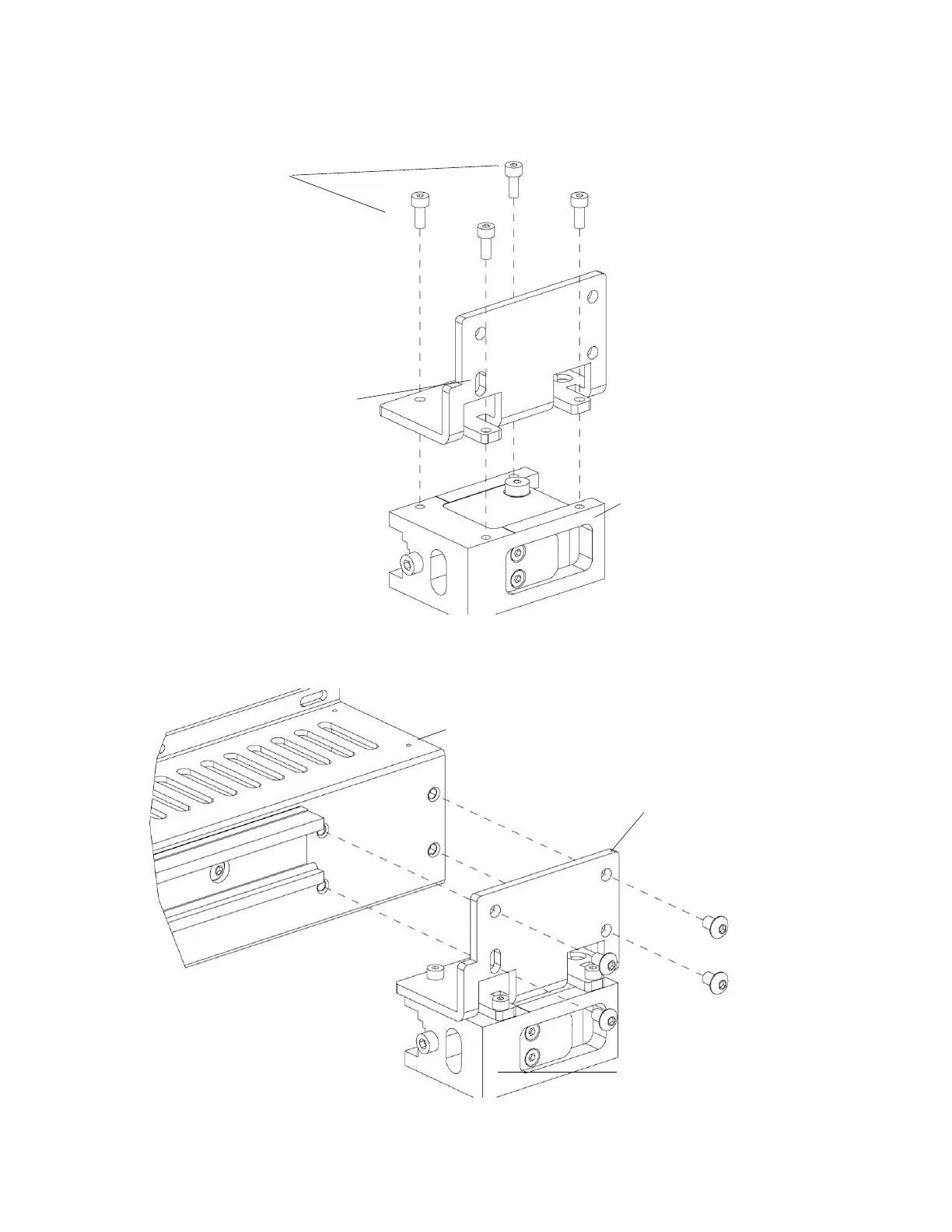

3 Using a 3 mm hex wrench install the 4 screws that attach the tensioner assembly to the replacement
tensioner bracket.
4 Use a 3 mm hex wrench to install the fours screws that attach the X-axis tensioner to the substrate of
the last expansion module in your library configuration.
3 mm screws
Replacement tensioner mounting
bracket with slot
black tensioner assembly
3 mm screws
substrate
tensioner mounting
bracket
black tensioner assembly
