Scalar i6000 Installation Guide 83

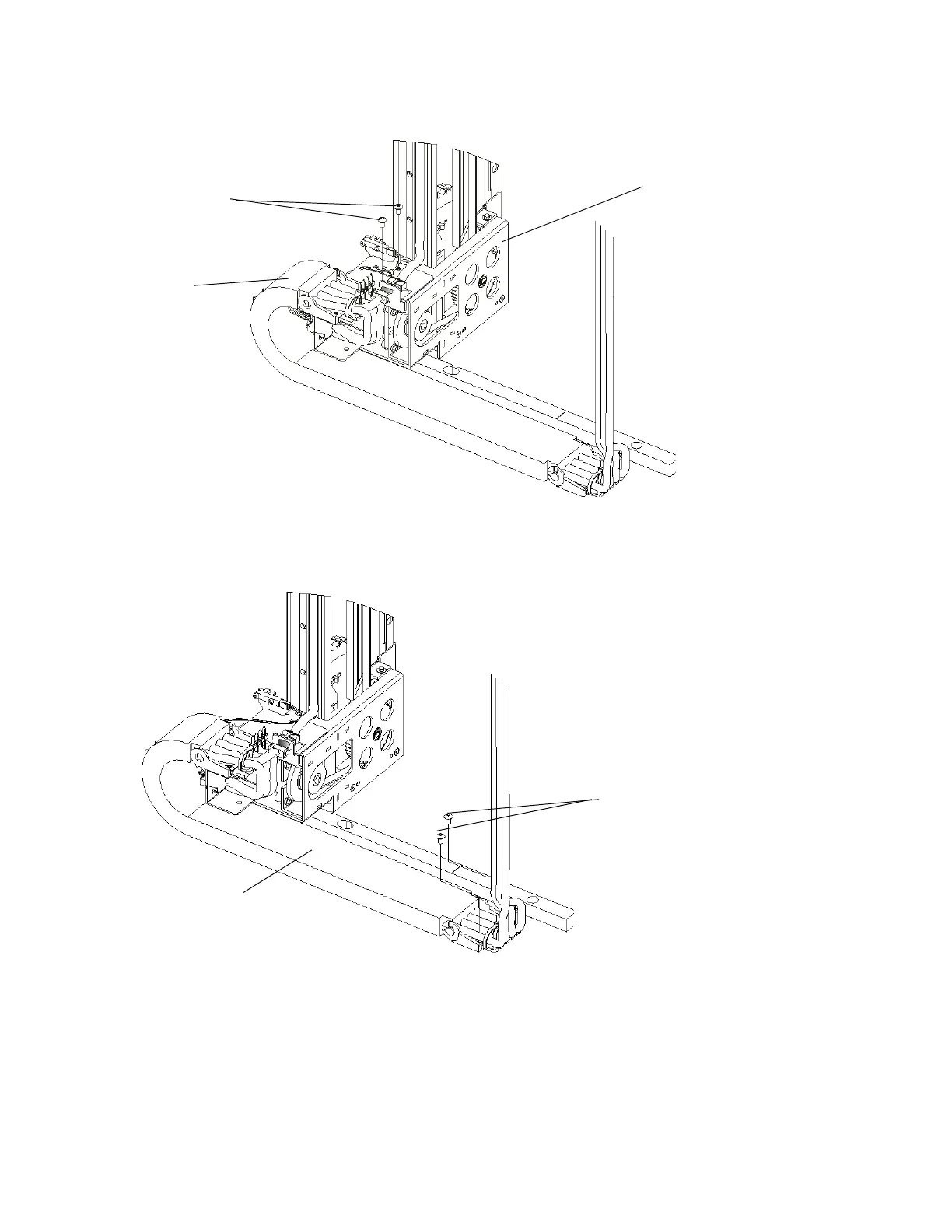

4 Using the 3 mm hex wrench, remove two 3 mm screws attaching the X-axis chain assembly (W8) to the
Y-axis drive mount assembly.
5 Using the 3 mm hex wrench, remove the two screws securing the X-axis chain assembly (W8) to the
bottom of the control module.
3 mm screws
X-axis
chain assembly
Y-axis drive
mount assembly
X-axis chain
assembly (W8)
3 mm screws
