210 Configuring the Library
5 Drag the partitions that you want the SCSI host to manage from the Internal LUN column to the
External LUN column.
6 Drag and drop the devices from the Internal LUN column to the appropriate LUN assignment in the
External LUN column.

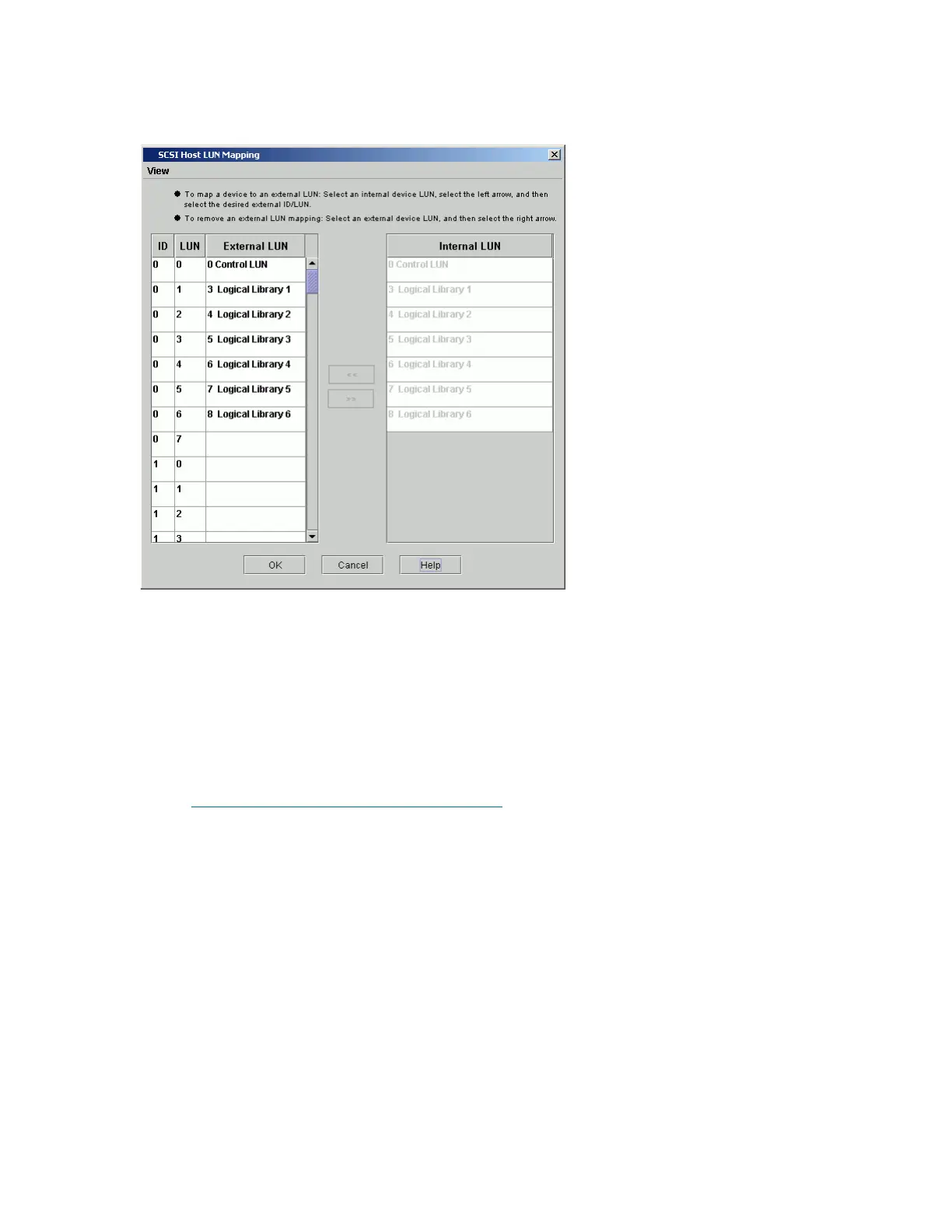

The right column of the SCSI host map dialog box, labeled Internal LUN, lists all available devices. The
External LUN column on the left provides map space for IDs 0-15 associated with the selected SCSI
Channel, and LUNs 0-7 associated with each ID. Drag and drop devices from the Internal LUN column
into the boxes associated with particular LUN assignments in the External LUN column.
7 Click OK to save the mapping.
Proceed to P
utting Physical Library and Partitions Online on page 220.
