216 Configuring the Library

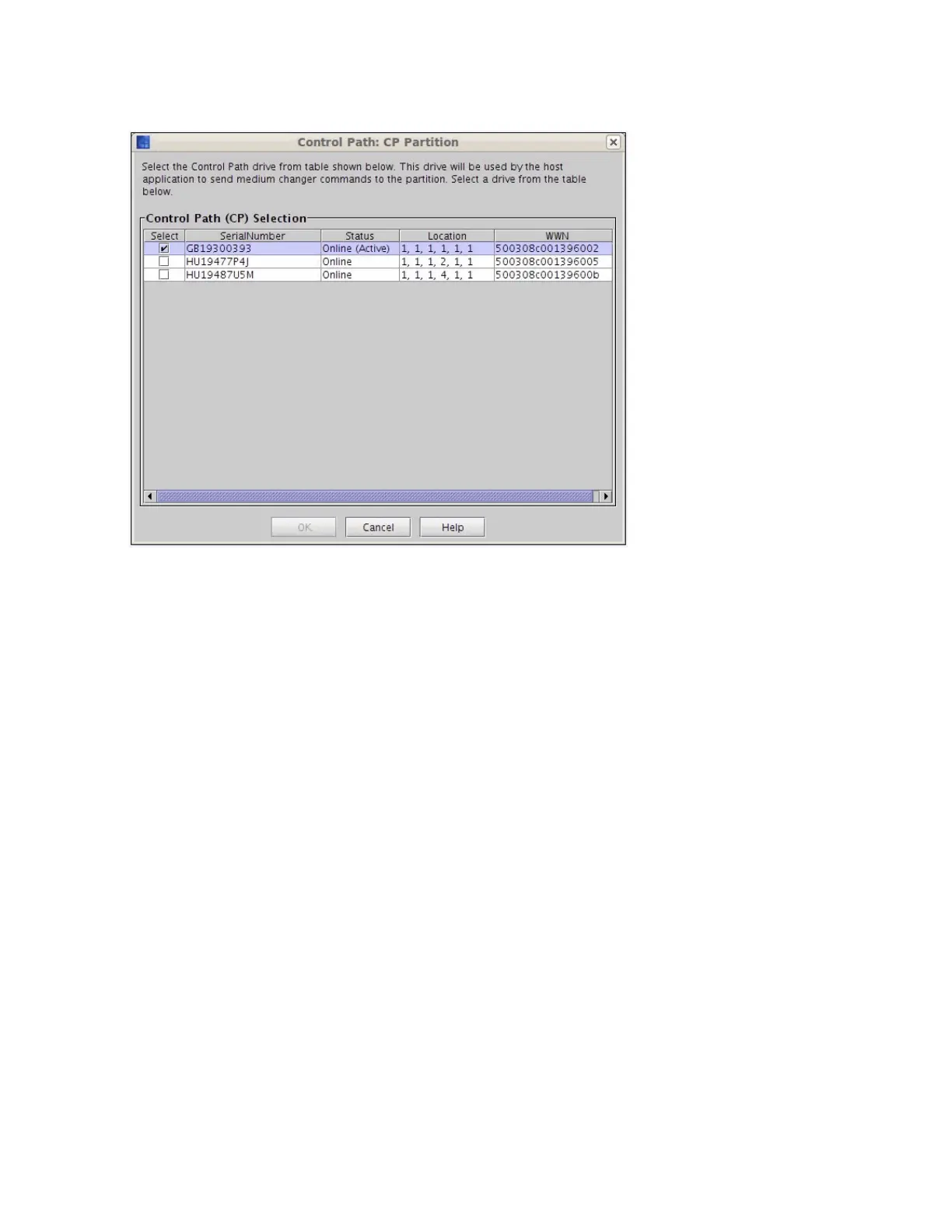

The Control Path dialog box appears.

4 In the CP Drive Selection field, select the drive you want to configure as the control path.

The primary Control Path Drive you selected is highlighted in yellow.

5 Click OK.
