Scalar i2000 Installation Guide 277

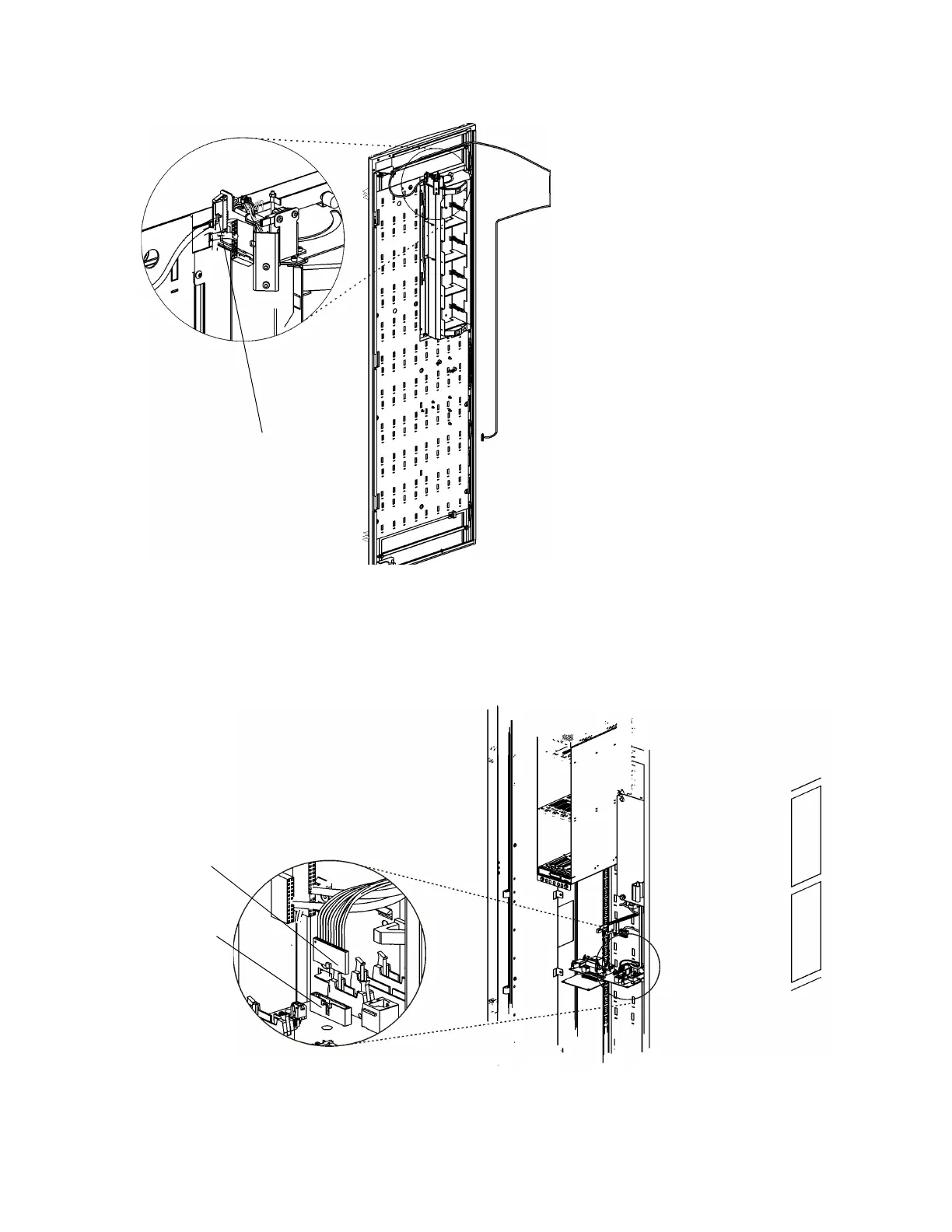

22 Plug the W6 cable into the I/E station and secure the cable using the plastic ties.
23 Route the I/E station cable (W6) from the I/E station lock assembly following the door interlock cable to
toward the rear of the expansion module. Continue routing cable W6 through the drive cluster clamps
down toward the LBX board.
24 Connect cable W6 to the J7 connector on the LBX board.
