302 Adding Optional Hardware

16 Use a #2 Phillips screwdriver to remove the top drive cluster cover plate, the mid-module cover plate,

the bottom drive cluster cover plate, and the LBX/IEX cover plate.

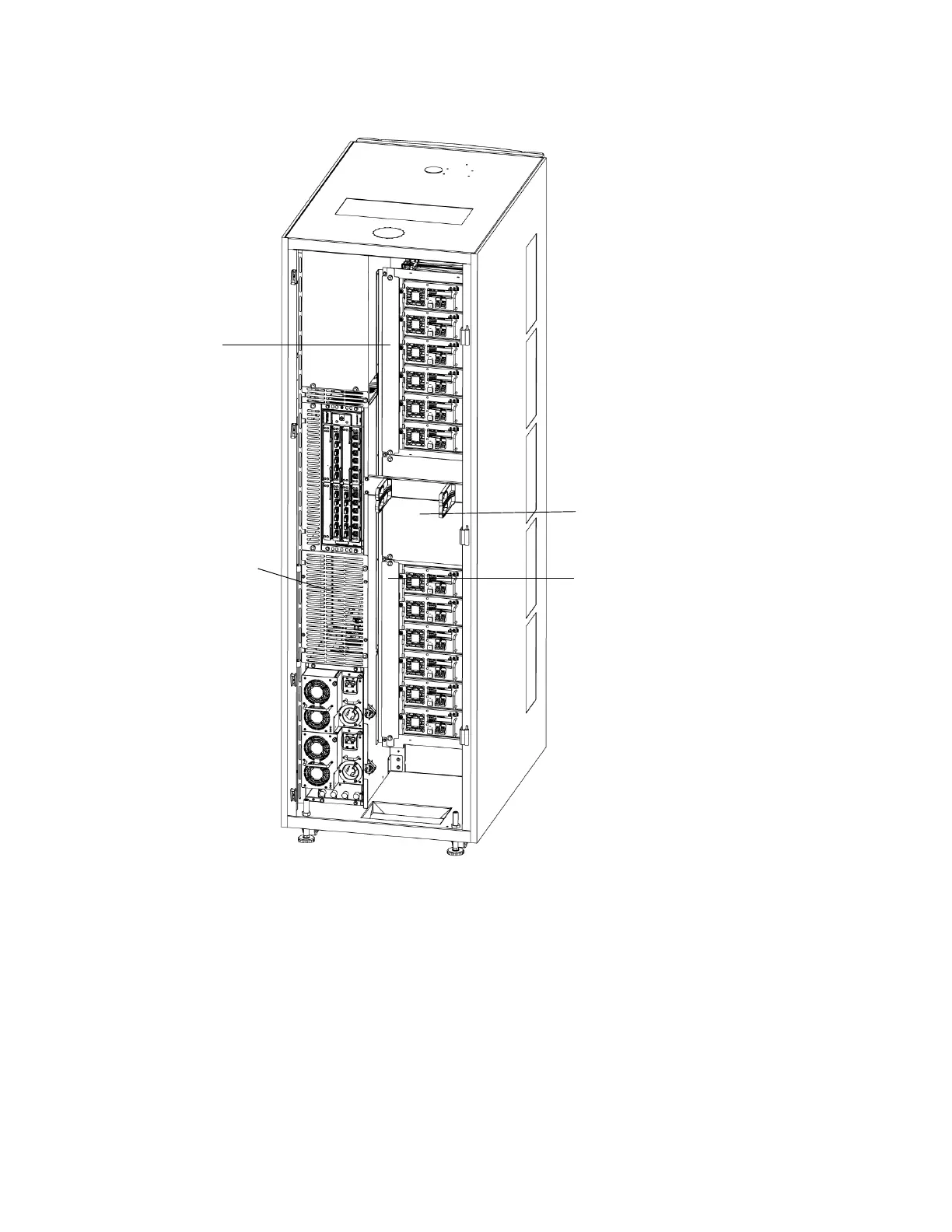

17 Complete routing the cable through the back side of the library.

mid-module cover plate

bottom drive cluster

cover plate

LBX/IEX cover plate

top drive cluster

cover plate
