QuickLabel Systems QL-300 User Manual

Printing
QL-300 User Guide 129

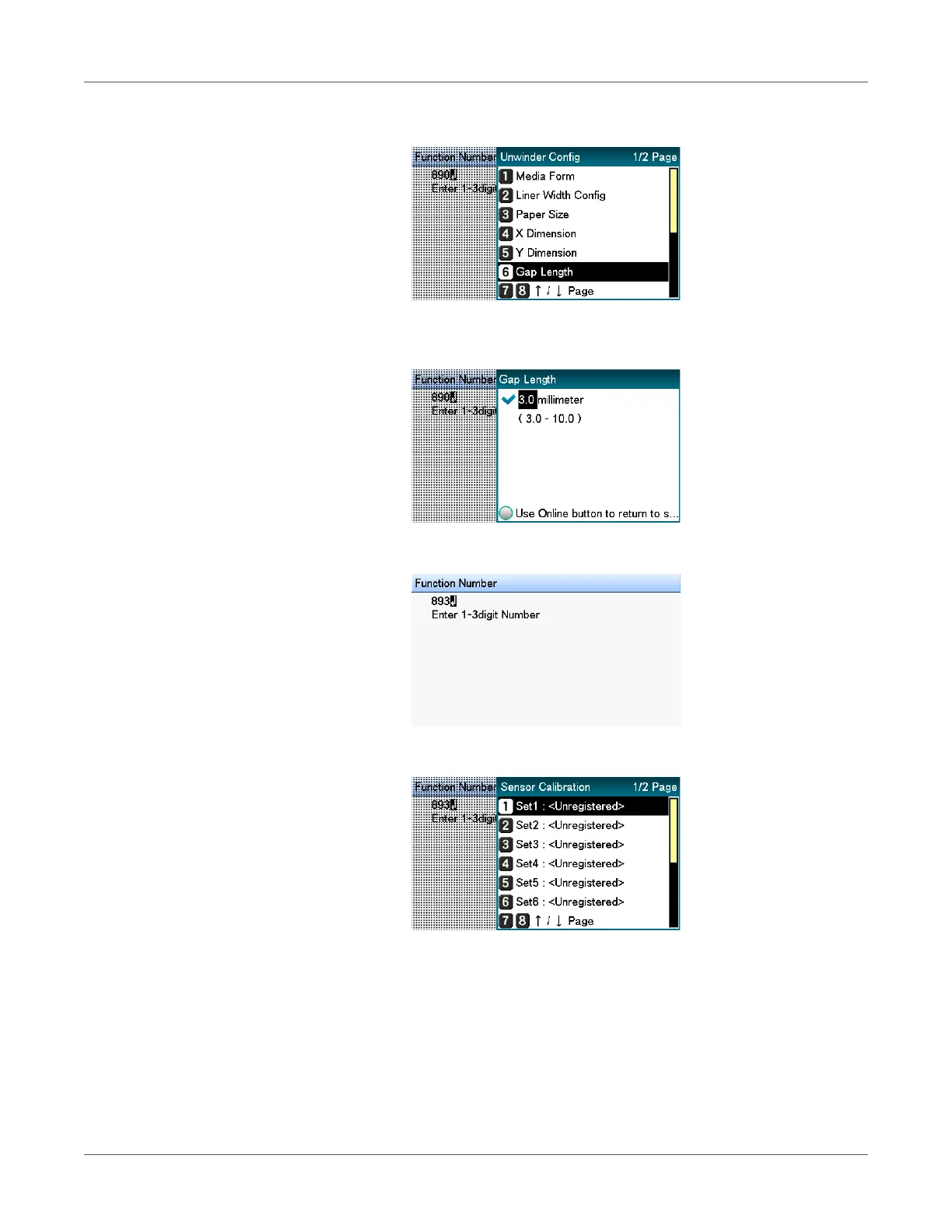

12 Select Gap Length from Unwinder Config, and then press the OK button.
13 Use the numeric keypad to enter the gap length, press the OK button, and then press the
ON LINE button. The display will return to the standby screen.
14 Press the Fn key, and then press the following buttons: 8, 9, 3, OK.
15 Select the setting number of the sensor to be configured, and then press the OK button.

QuickLabel Systems QL-300 Specifications

General

Brand	QuickLabel Systems
Model	QL-300
Category	Label Maker
Language	English
