PC Connection
QL-300 User Guide 49

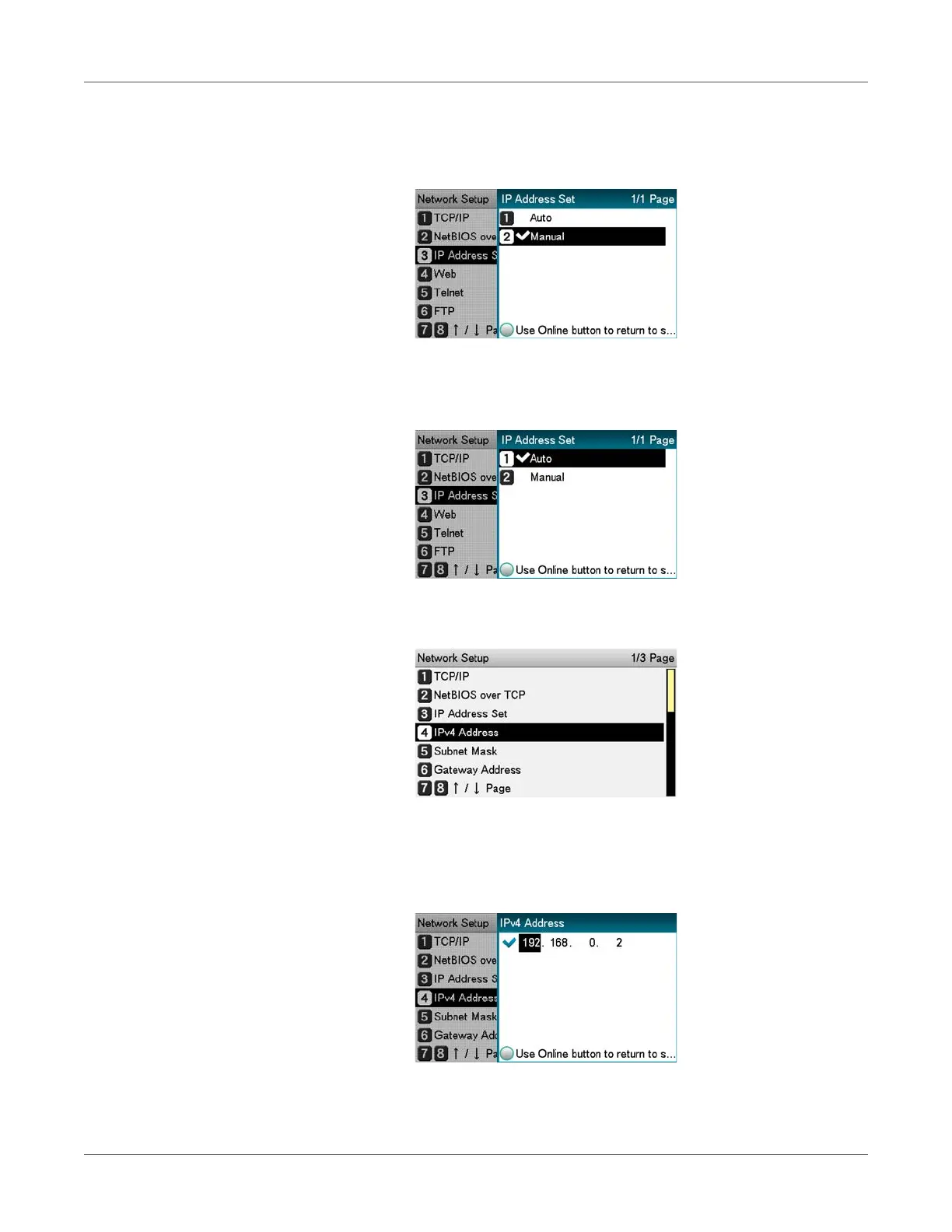

• To set the IP address manually, press the scroll button ▼ to select Manual, and then
press the OK button.
Go to step 8.
• When obtaining an IP address automatically, confirm that Auto is selected, and then
press the OK button.
Go to step 14.
8 Press the scroll button â–¼ several times to select IPv4 Address, and then press the OK
button.
9 Press the scroll buttons â–² and â–¼ or the numeric keypad to input the first three digits of the
IP address, and then press the OK button. Use the same operation to input the next three
digits. After input is complete, press the BACK button.
To move to the next box, press the OK button.
Note: The IP address in the screen is an example. Check with your enterprise network
administrator for the value to actually input.
To Next Page
