RADWIN2000+SeriesUserManual Release4.2.40 6‐22
ChangingtheLinkBand

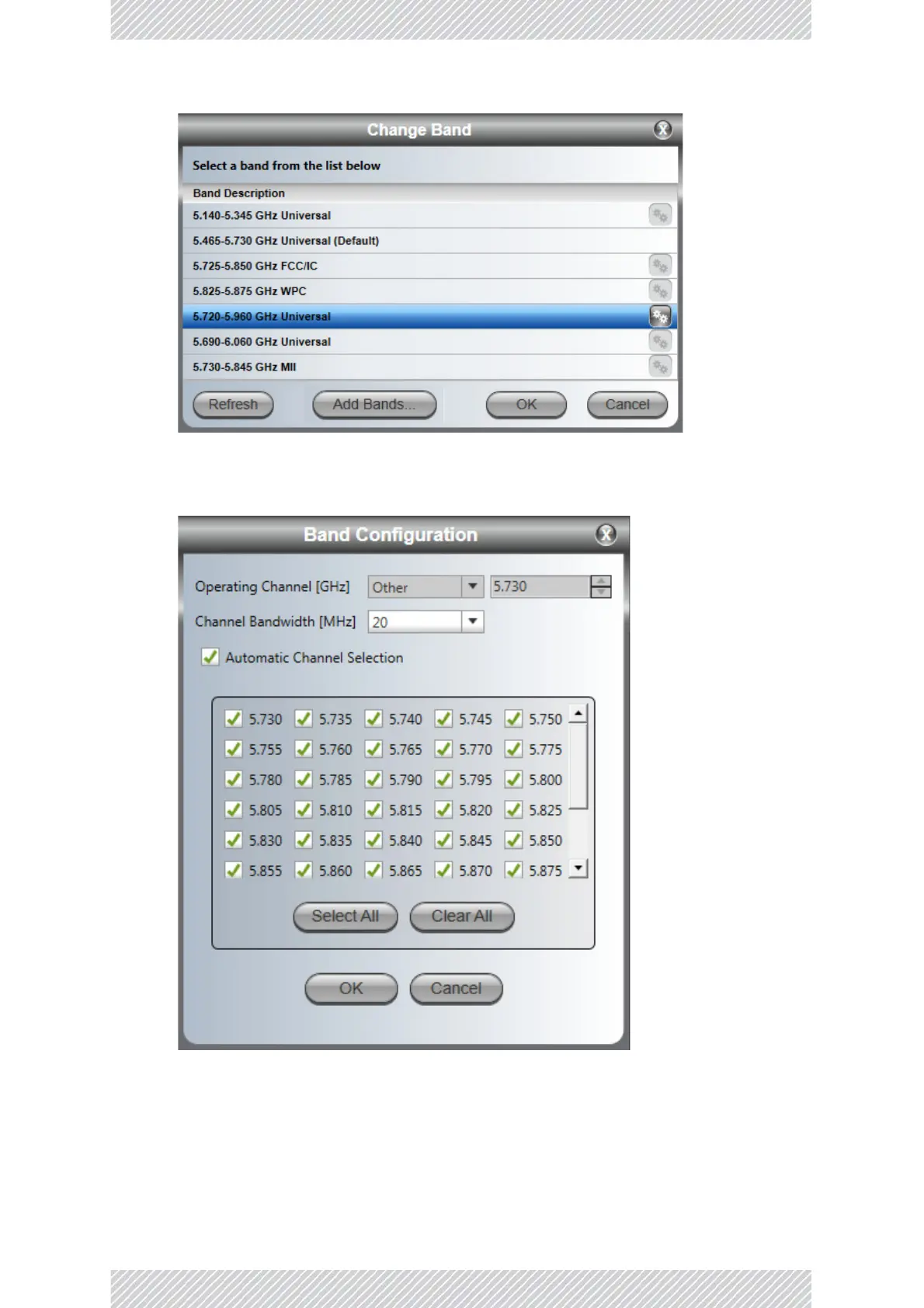

Figure6‐11:Add/ChangeBanddialog
3. Clicktherightbutton. Thefollowingwindowopens:
4. Hereyoumaychosetheworkingchannelbandwidthandchannelselectionasinthe
activationprocess.(WewillsetCBWto80MHzandACSfullyselected.)ClickOKto
acceptyourchoice.YouarereturnedtothedisplayinFigure 6‐11.
5. ClickOKagain.Thefollowingcautionarymessageisdisplayed:
