Radwin 2000+ SERIES User Manual

RADWIN2000+SeriesUserManual Release4.2.40 20‐4
SpectrumViewDisplayFunctionButtons


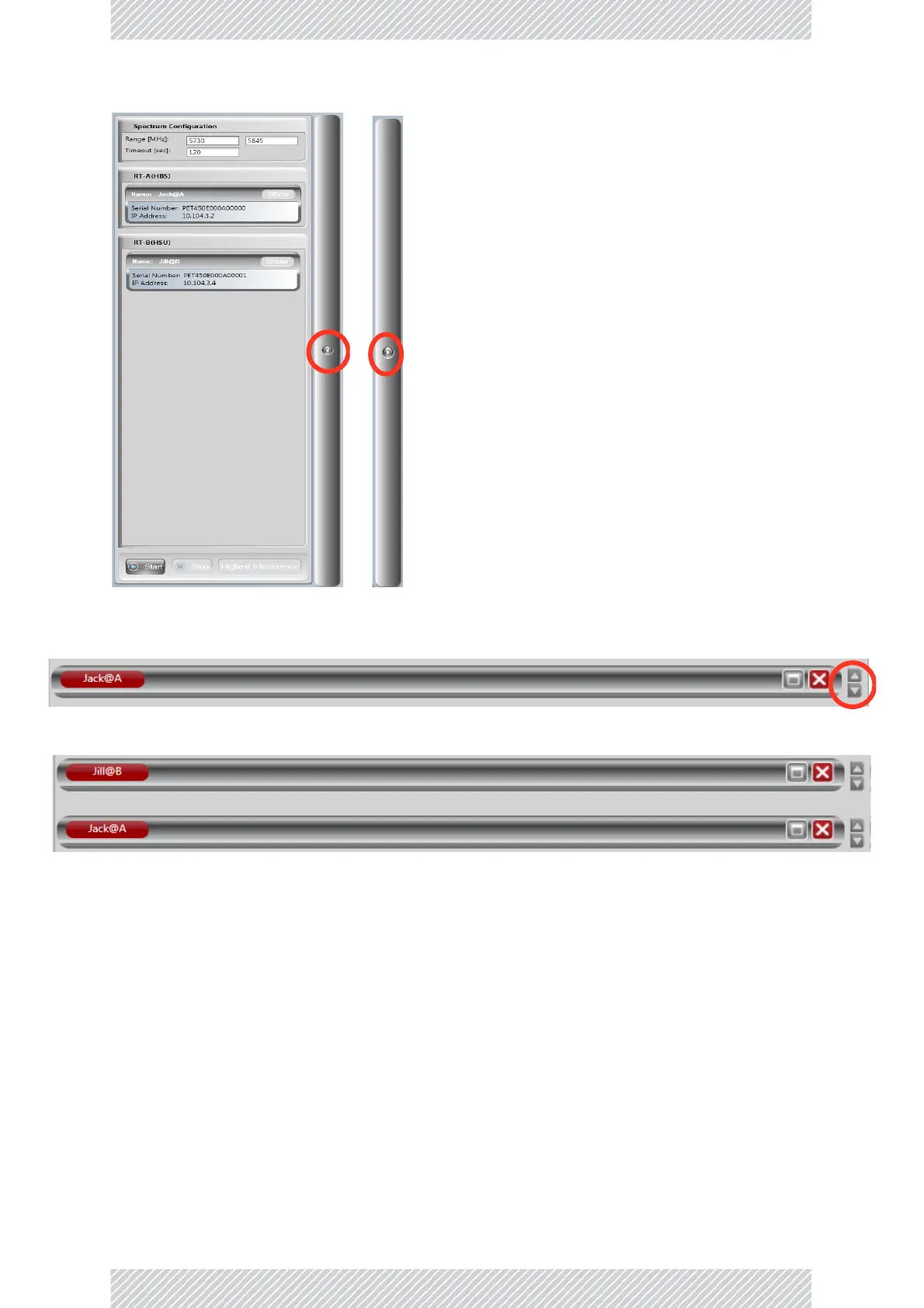

ThestandardXbuttonclosesthewindowcompletely(butdoesnotloosedata).The‐button
collapsestheviewtolooklikethis:
Thetwosidearrows(circled)areusedtoreorderastackofsuchviewonthedisplayarea:
TheremainingcontrolsontheSpectrumViewmainwindowrelatetoSpectrumViewdata
manipulation.Wewillcovertheminthenextsectionusingaliveanalysis.
20.7SpectrumViewDisplayFunctionButtons
SpectrumViewdatamanipulationfunctionsareprovideonthetopbuttonbar:

Radwin 2000+ SERIES Specifications

General

Frequency Bands	5.4 GHz, 5.8 GHz
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
Encryption	AES-128
Interface	Ethernet
Operating Temperature	-30°C to +60°C
IP Rating	IP67
