RADWIN2000+SeriesUserManual Release4.2.40 11‐6
ConfiguringtheRT‐A(HBS)asanHSSmaster

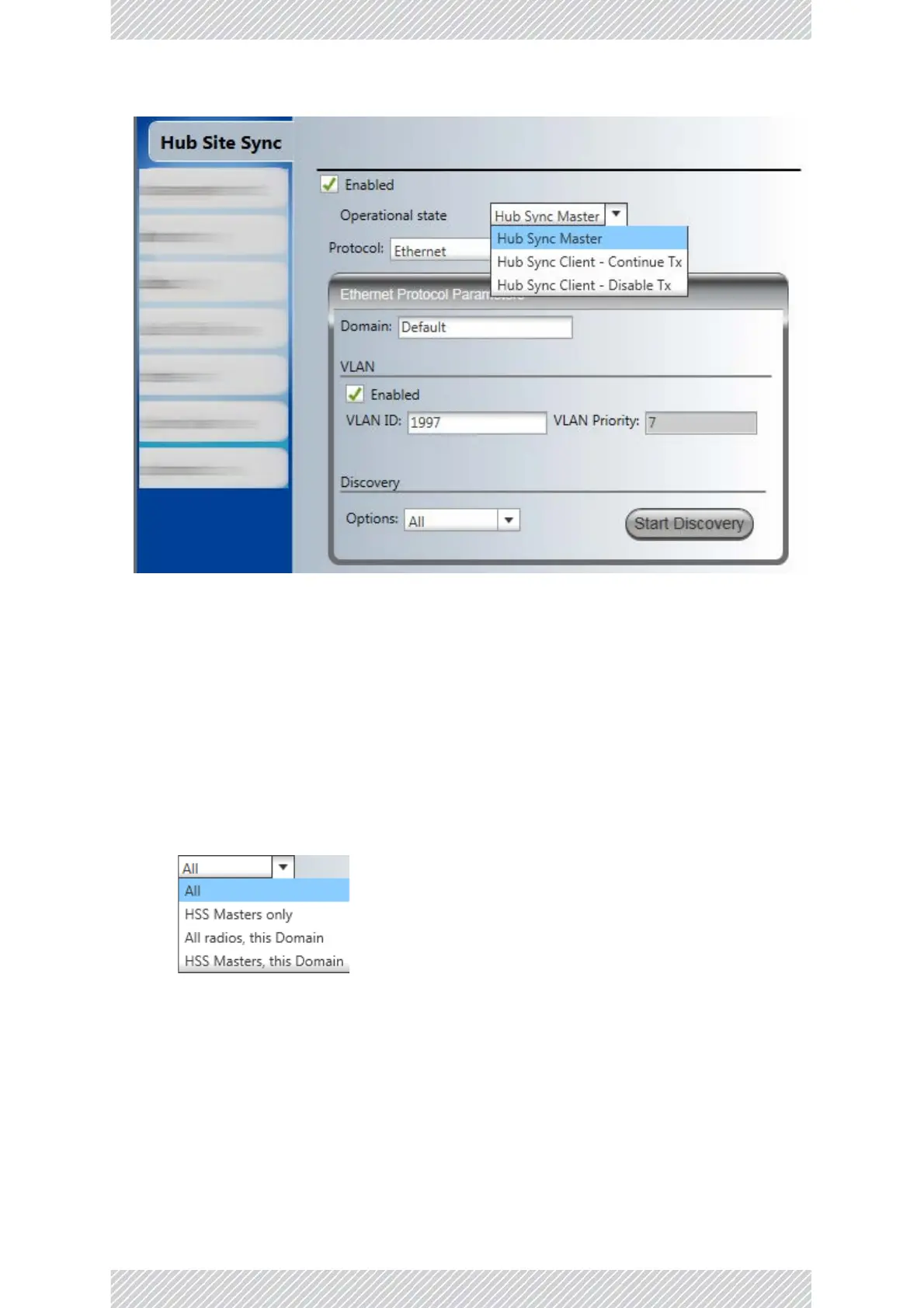

Figure11‐2:ExtendedProtocolParametersforHSSoE
4. SettheOperationstateasHubSyncMaster.Later,wewillneedoneoftheclient
optionsforthecollocatedsite.
5. SettheProtocolasEthernet.
6. TheDomainistheHSSdomainandreferstothecurrenthubsite.Itisusedto
distinguishbetweenhubsitestopreventinadvertentcollocationtoanover‐the‐air
unit.Wesetitasshown,toPM_Lab.
7. LeavetheVLANIDasisat1977unlessthereissomereasontochangeit.
8. TheDiscoveryoptionsareasfollows:
Figure11‐3:
HSSdiscoveryfilters
