RADWIN2000+SeriesUserManual Release4.2.40 4‐21
MountingtheIDU‐H/HPandRADWIN2000i
Ifyouareusingtwounitsononeshelf,youcanusetheconnectingflangetoconnectthem,as
showninFigure 4‐32.Usethetwosmallmountingearstomounttheconnectedunits.See
Figure 4‐33.

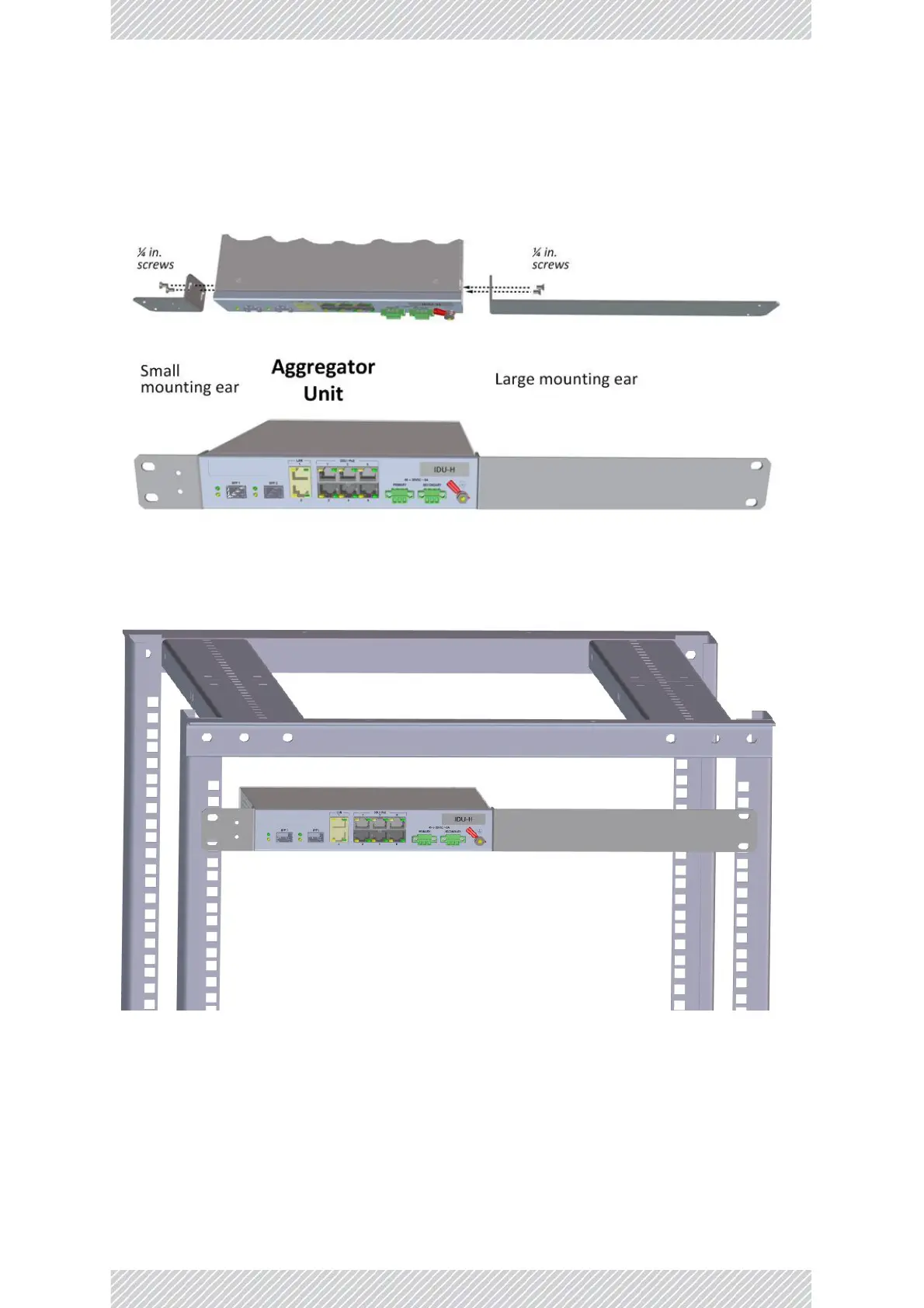

Figure4‐30:MountingaSingleIDU‐H/HP
Figure4‐31:SingleIDU‐H/HPmountedina19in.rack
