RADWIN2000+SeriesUserManual Release4.2.40 4‐18
MountinganODU,GSU,orHSS
5. Placethis“unit”onthepolewhereyouwanttomounttheODU.
6. Onceitisinplace,rotatethepoleclampasshown,thentightenbothbolts.
MountingonaWall
Whenmountinganunitonawall,thepoleclampisnotneeded,buttheverticaladaptoris,as
shown:

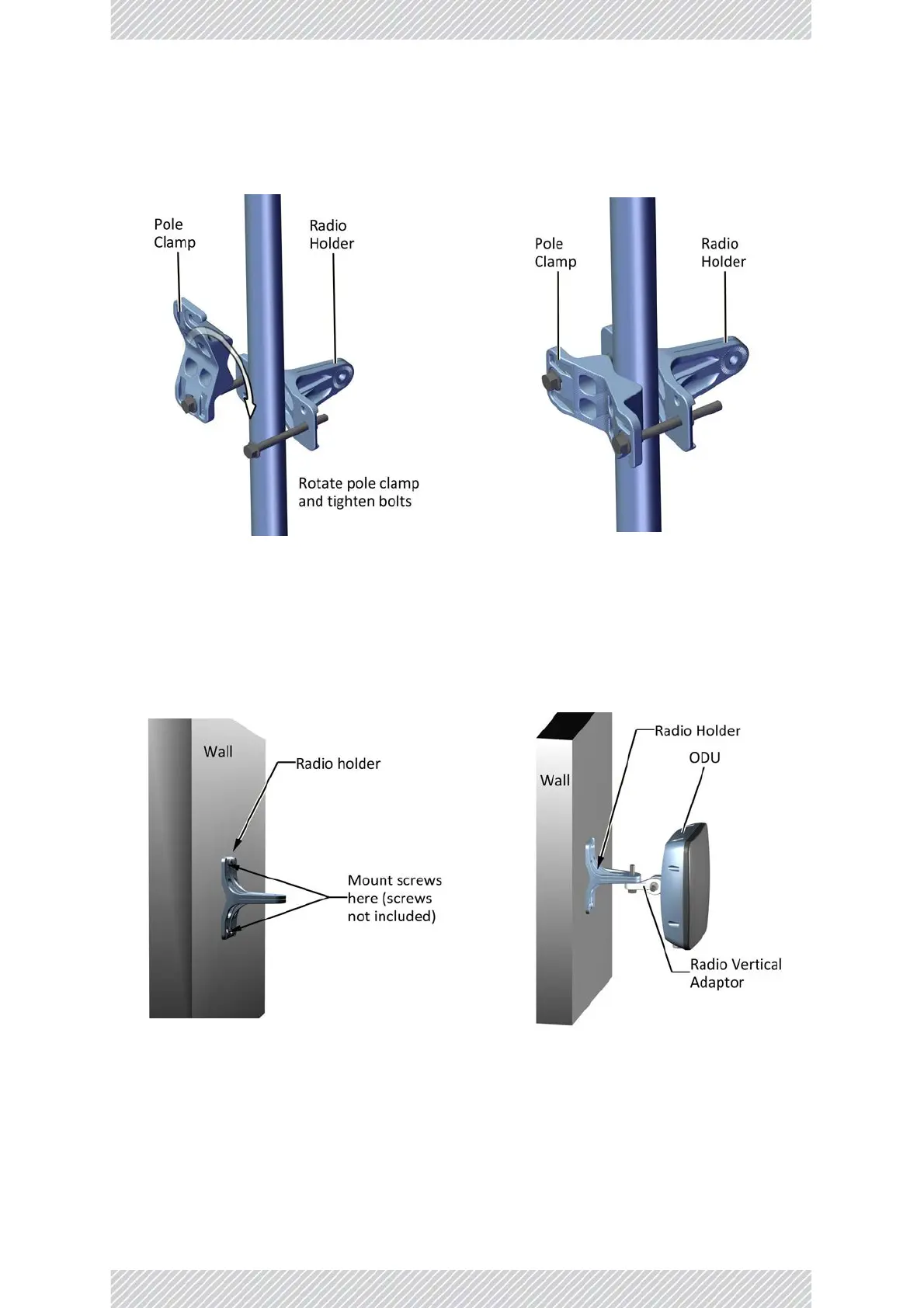

Figure4‐23:RotateClampandtightenbolts Figure4‐24:MountingKitonthinpole
Figure4‐25:Mountingaunitonawall(1) Figure4‐26:Mountingaunitonawall(2)
