AntennaAlignmentProcedure
4. Pointtheantenna
1
oftheMasterODUinthegeneraldirectionoftheSlaveODU,
andsecureittothepoleorwall.
5. FromtheSlaveODU,makeahorizontalsweepof180degreeswithitsantennaso
thatthestrongestsignalfromtheMasterODUcanbedetected.
6. SlowlyturntheSlaveODUantennabacktowardsthepositionoftheMasterODU,
listeningtothetoneuntilthebestsignalisreached.Seethefollowingfigurefor
audiblesignalvariations.

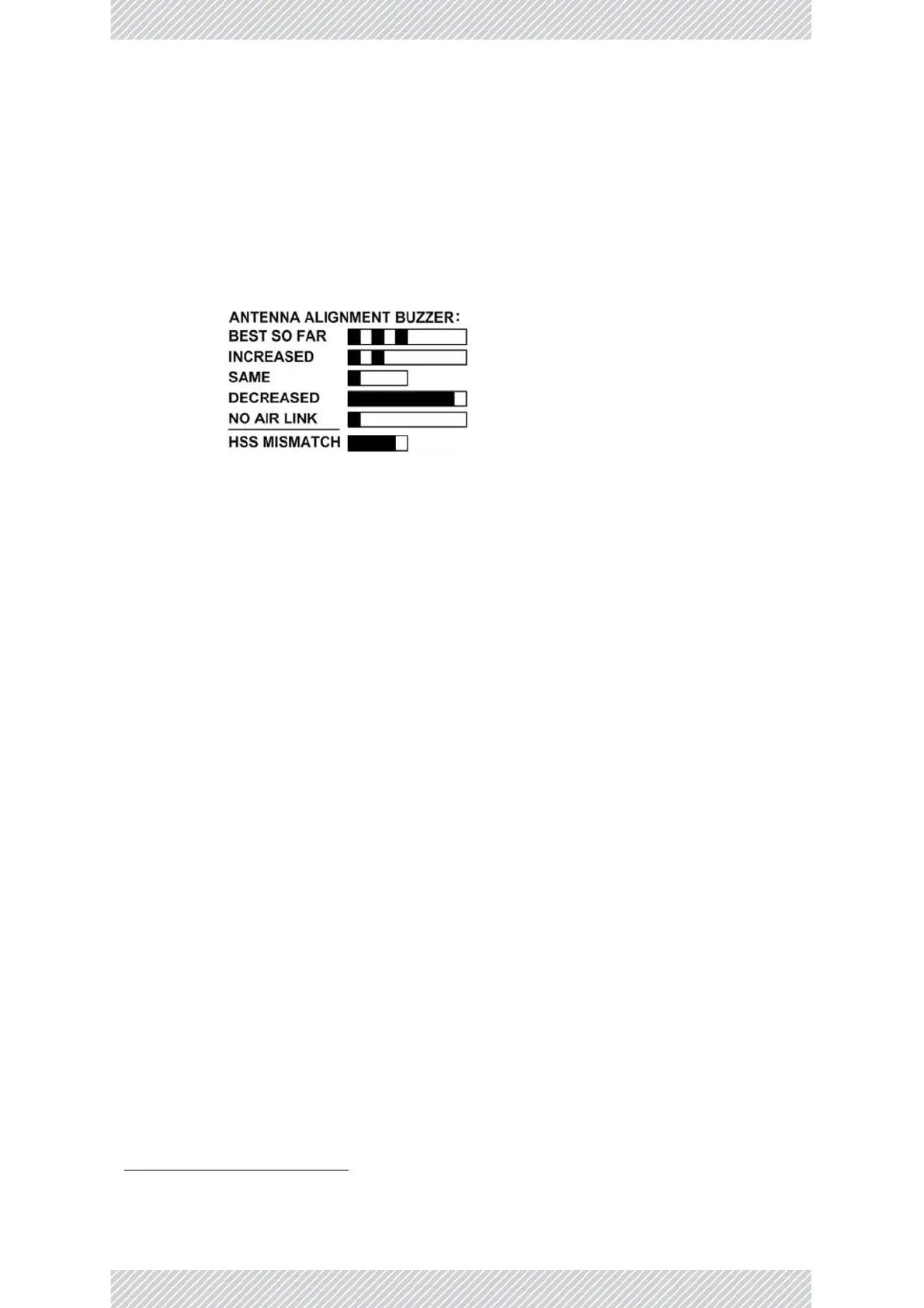

Figure4‐57:BeepSequenceforantennaalignment
•Threebeepsandapauseis'bestsignalsofar'
•Twobeepsandapauseis'signalqualityincreased'
•Onebeepandshortpauseis'nochangeinsignal'
•Longbeepandshortpauseis'signalqualitydecreased'
•Onebeepandalongpauseis'noairlink'
•Anyothersignaldoesnotrelatetoantennaalignment
7. SecuretheSlaveODUantennatothepole/wall.
8. RepeattheabovestepsfromtheMasterODU,listeningtoitsbuzzer:makea
horizontalsweepof180degreeswithitsantennasothatthestrongestsignalfrom
theSlaveODUcanbedetected.
9. SlowlyturntheMasterODUantennabacktowardsthepositionoftheSlaveODU,
listeningtothetoneuntilthebestsignalisreached.
10. SecuretheMasterODUantennatothepole/wall.
11. TurnoffthebuzzeroftheradiounitsfromtheRADWINManager(seeLink
ConfigurationToolBaronpage 7‐27).
1. Ifyourunithasanintegratedantenna,“pointingtheantenna”consistsofpointingtheunititself.

Radwin 2000+ SERIES Specifications

General

Frequency Bands	5.4 GHz, 5.8 GHz
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
Encryption	AES-128
Interface	Ethernet
Operating Temperature	-30°C to +60°C
IP Rating	IP67
