RADWIN2000+SeriesUserManual Release4.2.40 4‐15
MountinganODU,GSU,orHSS

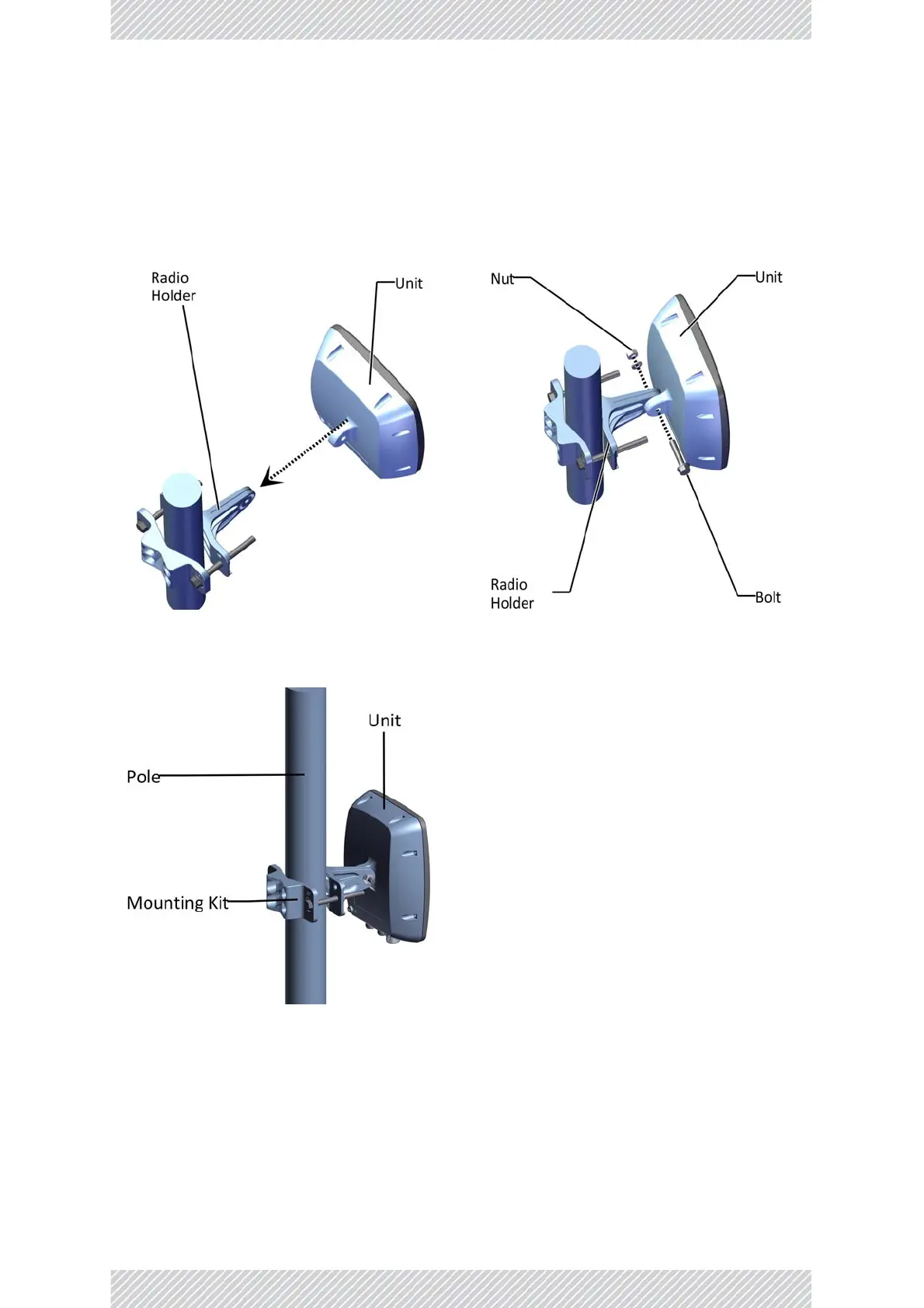

4. Usingan8x40bolt,mountanODUtothemountingkit’sradioholder.
• Asmallform‐factorODU(RADWIN2000A+)orGSUcanbeseeninFigure 4‐14
throughFigure 4‐16below.
• Alargeform‐factorODU(RADWIN2000C+orRADWIN2000D+)canbeseenin
Figure 4‐17throughFigure 4‐19below.
Figure4‐16:Smallform‐factorODUorGSUonaverticalpole
Figure4‐14:Mountingasmallform‐factor
ODUorGSU(1)
Figure4‐15:Mountingasmallform‐factor
ODUorGSU(2)
