SitePreparation
4.6SitePreparation
SitePreparationincludes‐
• Obtaining anynecessarylegalandstatutorypermitsforinstallationofradioequipment
• Clearingphysicalobstructionsasfaraspossible
• Erectingamastortowerifrequired.Amast‐sitedODUorexternalantennatypically
usesapoleattachedtothemast.
• Installingapoleonabuildingwallifrequired
• Constructingaweather ‐proofcabinettohouseaPoEdeviceorotherIDUifitisnotto
behousedindoors
• Ensuringavailabilityofpower,typicallystandardlocalACpower
• EnsuringthatthereisaLANcableinplacefromtheuser’sswitchtothePoE/IDUloca‐
tion
4.7MountingUnits
4.7.1MountinganODU,GSU,orHSS
UseamountingkittomountanODU,GSU,orHSSonawallorpoleasshowninthefollowing
figures:

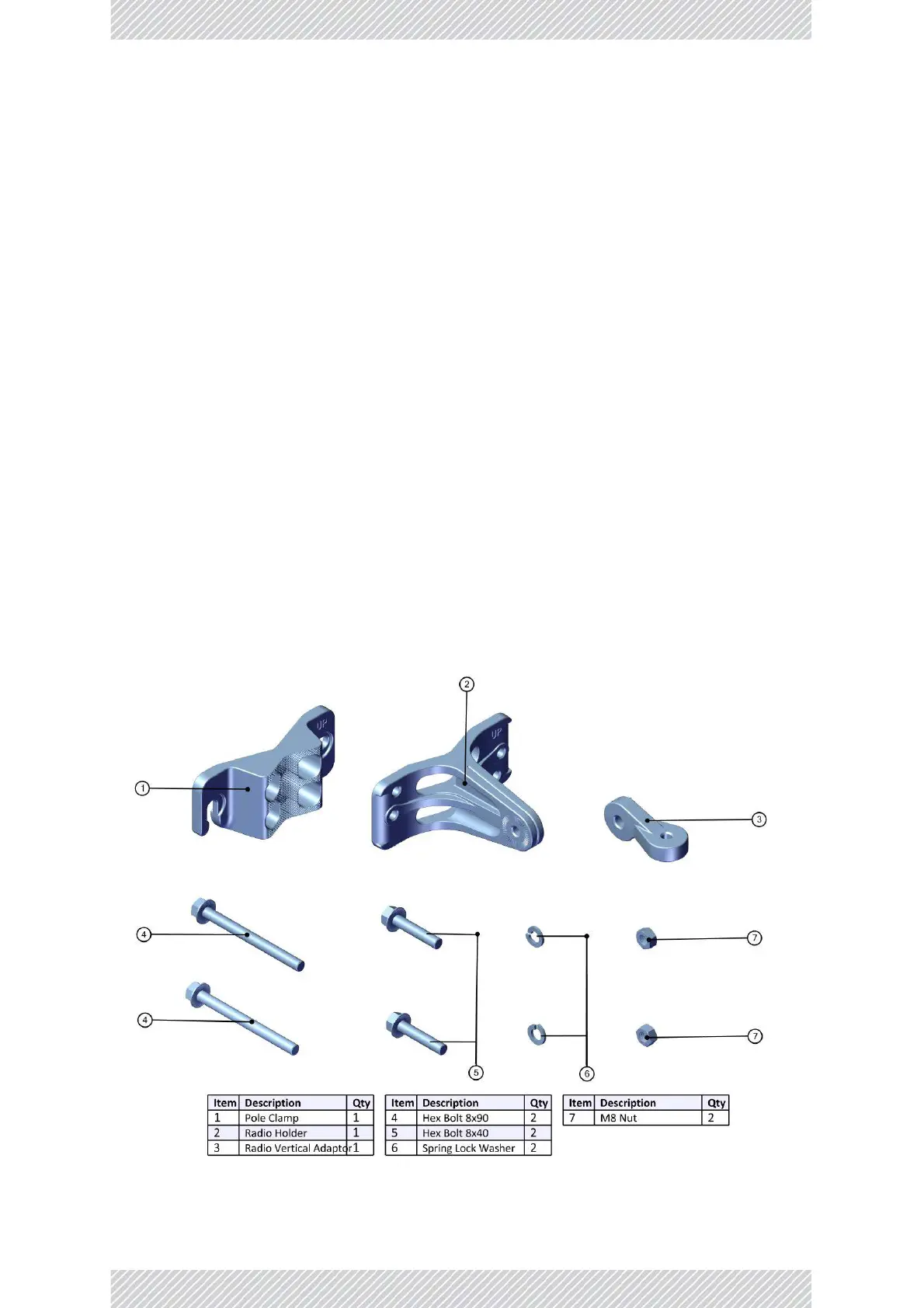

Figure4‐9:MountingKitContents
