RADWIN2000+SeriesUserManual Release4.2.40 8‐7
ObtainingReports
•Currentgivesyouthelatestentry.
•15Minutesprovidesda tainascrolldownlistin15minuteintervals
•Daily(24hours)showsresultsforthelast30daysatmidnight.
TheThresholdbuttonenablesyoutosettheuppertrafficthresholdsforreporting.Traffic
conditionsabovethethresholdindicatecongestionandprobablylostframes.Thethresholds
aresetseparatelyforuplinkanddownlink:

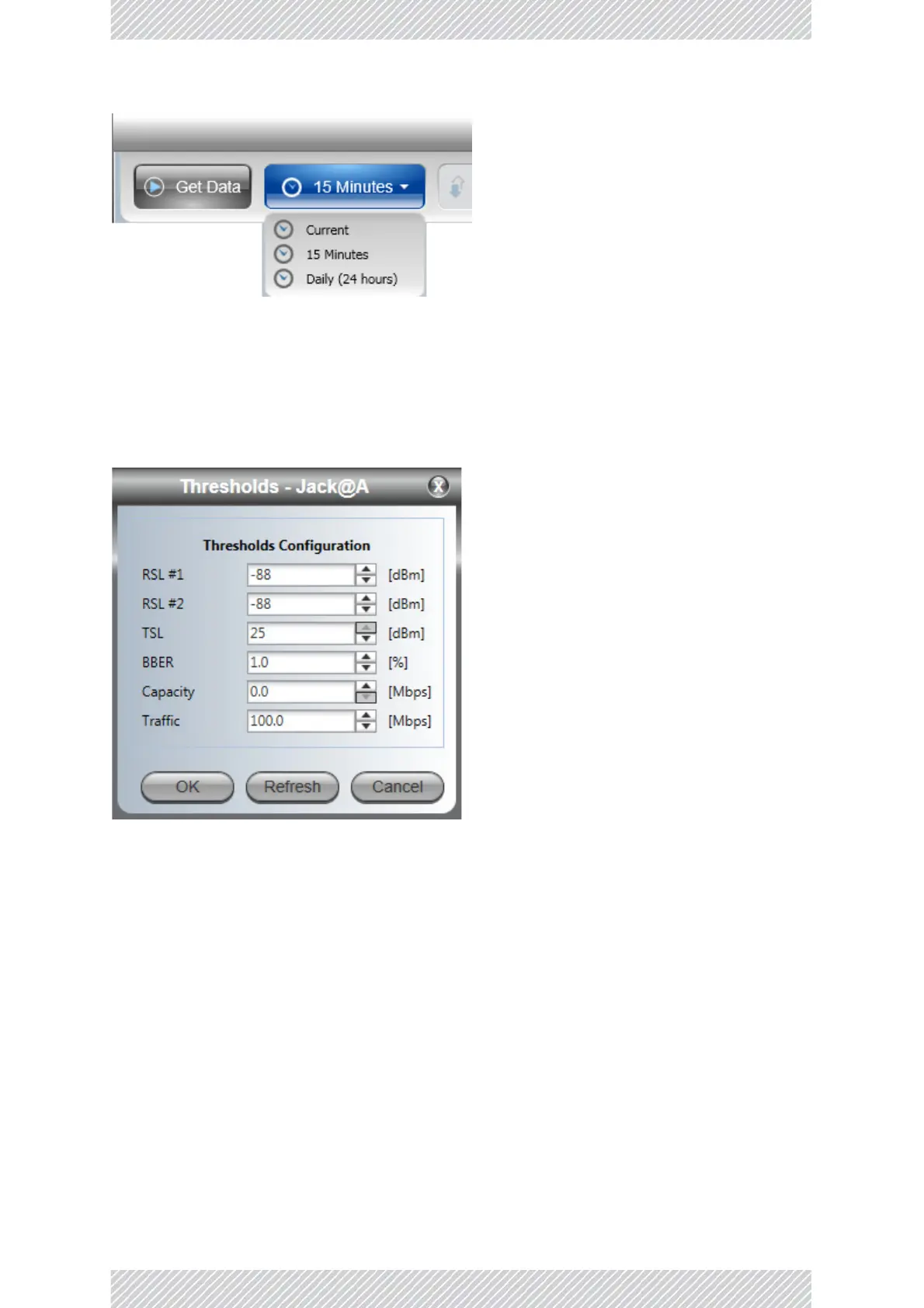

Figure8‐2:Settingtheuppertrafficthreshold‐Downlink
Togetdatafordisplay,clickGetData.Theprocessmaytakeafewseconds.
HereisanextractforthedownlinkPerformanceMonitoringreportbasedon15minutes
recording:
