MountinganODU,GSU,orHSS
MountingonaPole
1. Connectthepoleclamptotheradioholderwiththe8x90bolts,butdonottighten
theboltsalltheway‐tightenthemsothattheyarenotcloserthanadistance
equaltotheradiusofthe pole.Youwillthenhaveone“unit”thatyoucantak eto
thelocationonthepolewhereyouwanttomounttheODU.(SeeFigure 4‐21to
Figure 4‐24formountingonathinpole).
• Tightenallboltswithatorqueof15N*m.
• WhenmountinganODUonapoleorwall,ensurethattheunitis
orientedsothatthecableconnectorsareatthebottom.
• DonotmountanODUhorizontally
• Ensurethattherearenodirectobstructionsinfrontofanintegrated
antennaODUorinterferencefromman‐madeobstacles.

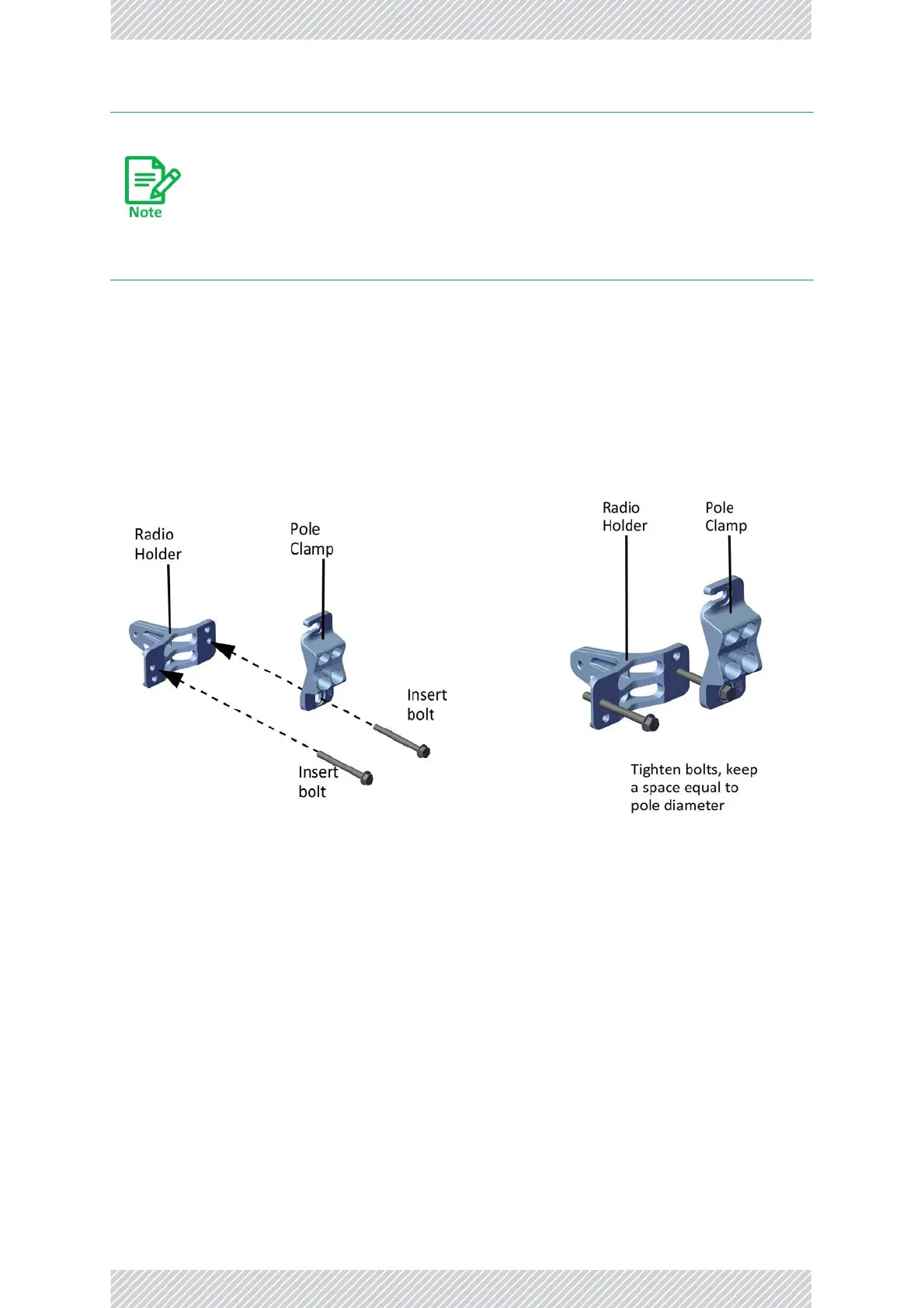

Figure4‐10:ConnectPoleClamptoRadio
Holder
Figure4‐11:Tightenbolts

Radwin 2000+ SERIES Specifications

General

Frequency Bands	5.4 GHz, 5.8 GHz
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
Encryption	AES-128
Interface	Ethernet
Operating Temperature	-30°C to +60°C
IP Rating	IP67
