WhereistheSpectrumViewDatastored
SpectrumViewmayalsoberunonamanagingcomputerdirectlyconnectedtotheRT‐
B(HSU).RememberthatinsuchacasetheresultswillbequitedifferentiftheRT‐B(HSU)is
alreadypartofalink(registeredornot)orifitiscompletelystand‐alone,forexampleusinga
differentspectralrangeandoperatingBandfromtheRT‐A(HBS).Intheformercase,expecta
“noisehump”aroundthechannelsusedbythelink,duetothedutysignalsfromtheRT‐
A(HBS).
20.5WhereistheSpectrumViewDatastored
SpectrumViewdataisalwaysstoredintheODUoriginatingtheanalysis.TheRT‐A(HBS)
maintainsthelastSpectrumViewanalysisdataforbothmember softhelink.Ifyourun
SpectrumViewfromadirectlyconnectedODU,itstoresitsowndata,whichmaybequite
differentfromtheanalysisobtainedforthesameRT‐B(HSU)fromtheRT‐A(HBS).
20.6SpectrumViewMainWindow
Inthissectionwereviewthemainwindowmanagementcontrols.

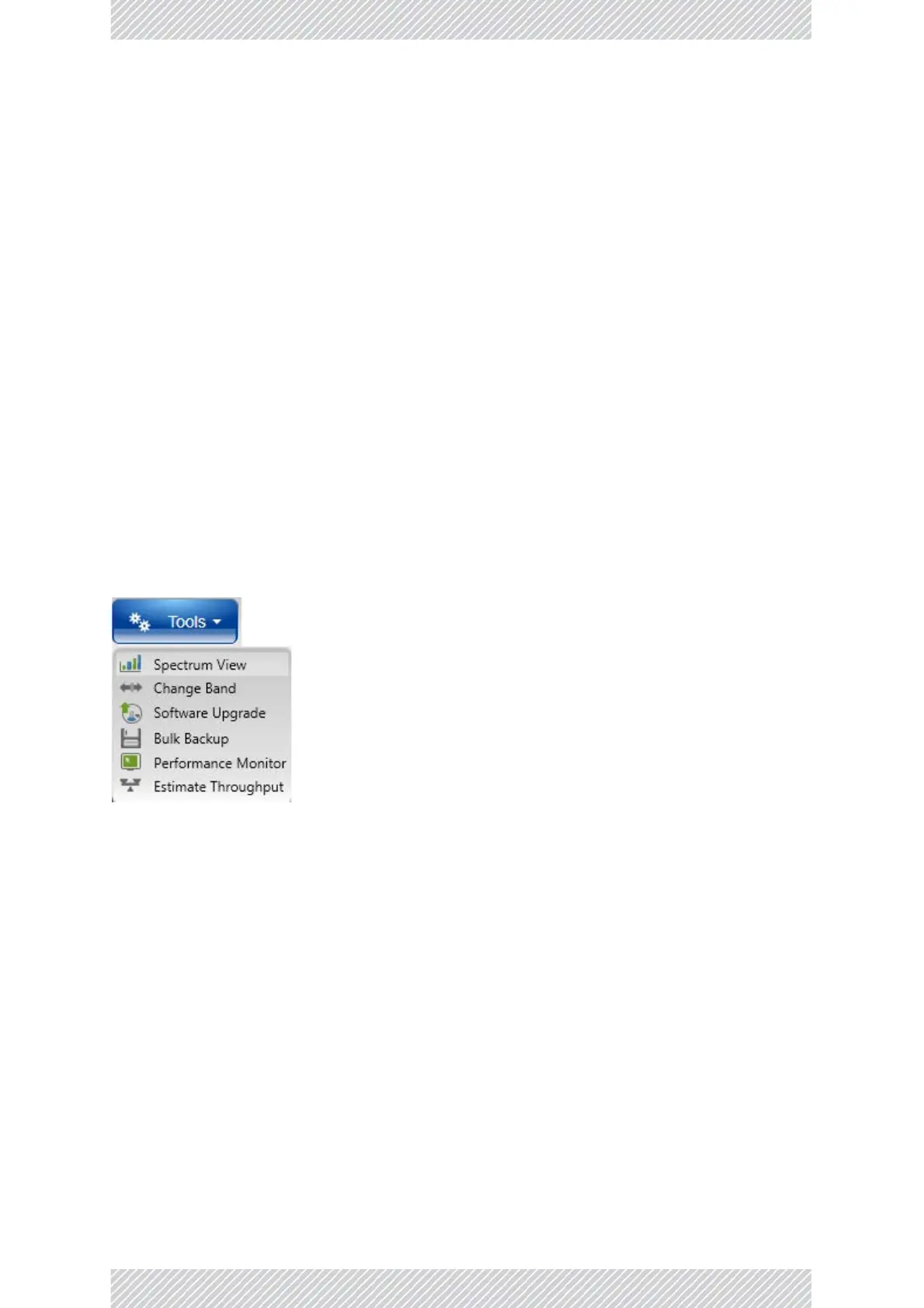

FromtheToolstab,chooseSpectrumView.
TheSpectrumViewmainwindowopensinfullscreenmode:

Radwin 2000+ SERIES Specifications

General

Frequency Bands	5.4 GHz, 5.8 GHz
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
Encryption	AES-128
Interface	Ethernet
Operating Temperature	-30°C to +60°C
IP Rating	IP67
