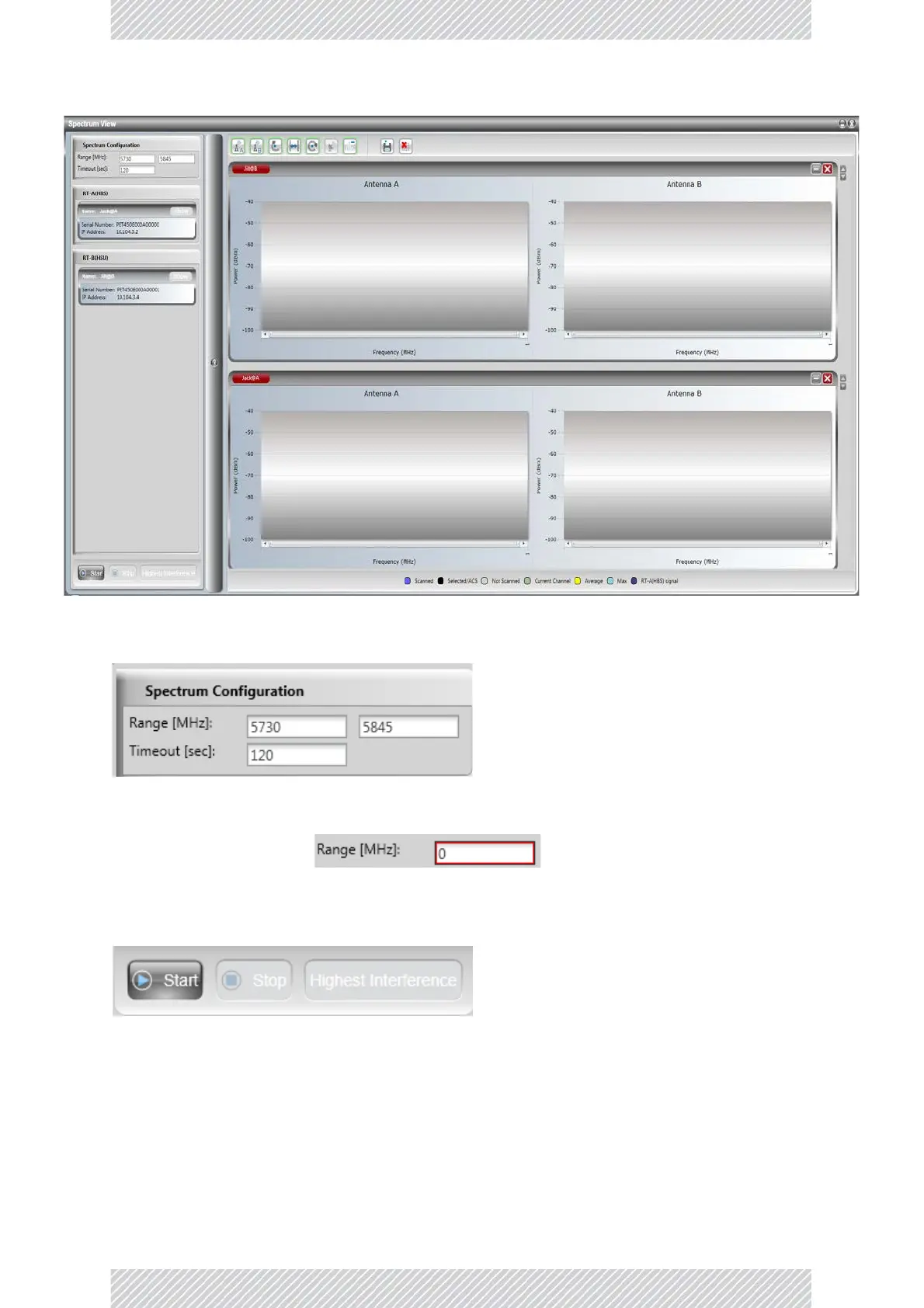

SpectrumViewMainWindow
UsethetopleftpaneltosettheSpectrumViewconfigurationparametersandchoosean
analysistype‐EntirelinkorSpecificODU.
Thesettingsare“sticky”forthelinkandwillbereused.Theanalysisrangeislimitedfrom
4900to6050MHzwithamaximumdifferenceof500MHz.Erroneousentrieswillbesho
wn
witharedborderlikethis:
Thetimeoutisthemaximumanalysistimepersite.Usethebottombuttonbartostartorstop
ananalysis:

Sincealargelinkwillclutteruptherighthanddisplayarea,youmayselectivelyShow,
minimizeorremovealinkmember.Anotherwayoffreeingupmorespaceforanalysis
displaysistohidethelefthandpanelusingthecircledarrow:
