MountinganExternalAntenna
4.7.2MountinganExternalAntenna
MountingExternalAntennasusingtheMountingKit
Whenusinganexternalantennasforaradiounit,aflatpanelantennasuchasthatshownin
Figure 4‐4istypicallyused.Ithasfourboltsforamountingkitadapter.Themountingkit
adaptorappearsasshowninFigure 4‐27:


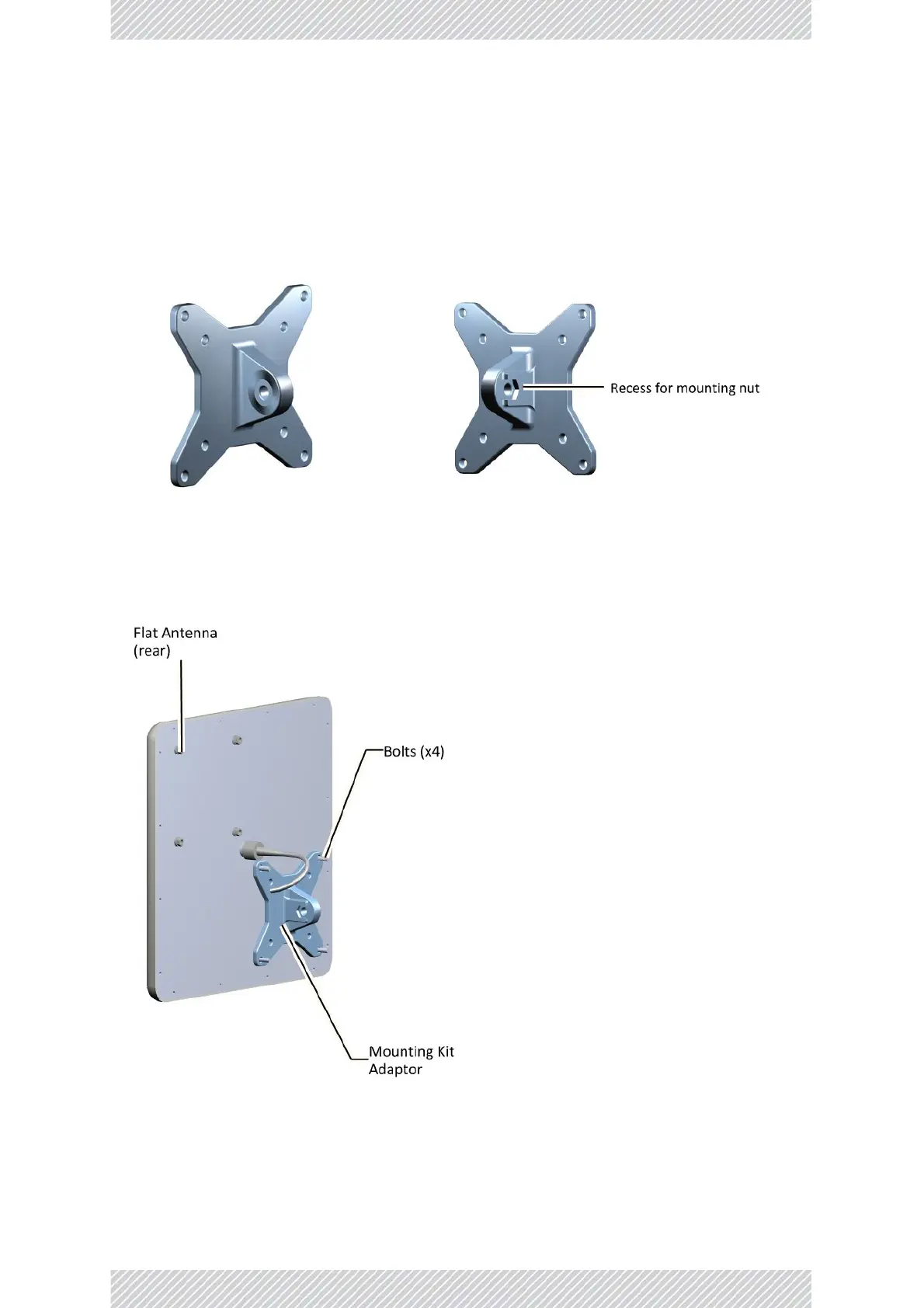

Figure4‐27:Flatpanelantennamountingkitadapter
Attachthemountingkitadaptortotherearoftheexternalantennaasshown:
Figure4‐28:FlatPanelantenna‐rearwithmountingkitadapter
Mounttheantennawiththeadaptortoaverticalorhorizontalpoleortoawallinasimilar
mannerasshowninFigure 4‐9toFigure 4‐24.

Radwin 2000+ SERIES Specifications

General

Frequency Bands	5.4 GHz, 5.8 GHz
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
Encryption	AES-128
Interface	Ethernet
Operating Temperature	-30°C to +60°C
IP Rating	IP67
