Radwin 2000+ SERIES User Manual

RADWIN2000+SeriesUserManual Release4.2.40 21‐4
SiteManagement‐MasterODU
TheUserNameandPasswordarerespectively,adminandnetmanasusedforTelnetaccess.
YoumustclicktheLogInbutton toeffectentrytotheWI.
Theforegoingappliestobothradiounits.Thefunctionalitydescribedbelowispredominantly
siteoriented.SiteconfigurationitemsshownforSite_AmaybecarriedoutforSite_Bby
loggingontoit.
21.9SiteManagement‐MasterODU
21.9.1TheMainWindow

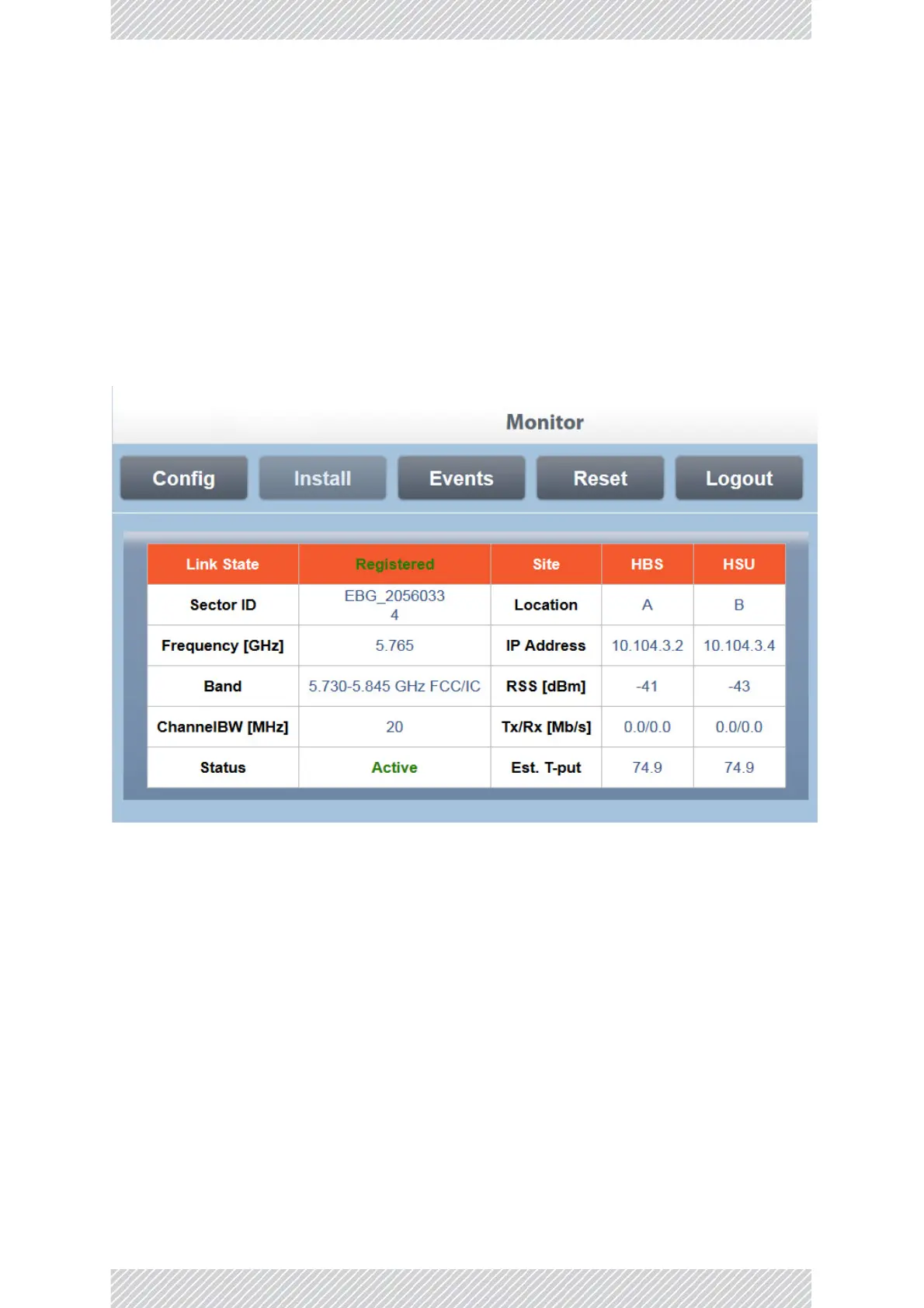

Figure21‐2:Webinterface‐Mainwindow
ThelinkID(EBGX20560334)appearsallorinpartastheheading.Themainpanelisself
explanatory.ThegreenActiveindicatorwillvaryaccordingtothestatusoftheMasterODU
shownbytheRADWINManager.Thetopgreenitem(Registeredhere)indicatesthestat
usof
theSlaveODU.

Radwin 2000+ SERIES Specifications

General

Frequency Bands	5.4 GHz, 5.8 GHz
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
Encryption	AES-128
Interface	Ethernet
Operating Temperature	-30°C to +60°C
IP Rating	IP67
