RADWIN2000+SeriesUserManual Release4.2.40 4‐17
MountinganODU,GSU,orHSS
ToattachanODU,GSU,orexternalantennatoahorizontalpole,usetheradiovertical
adaptorasshown:

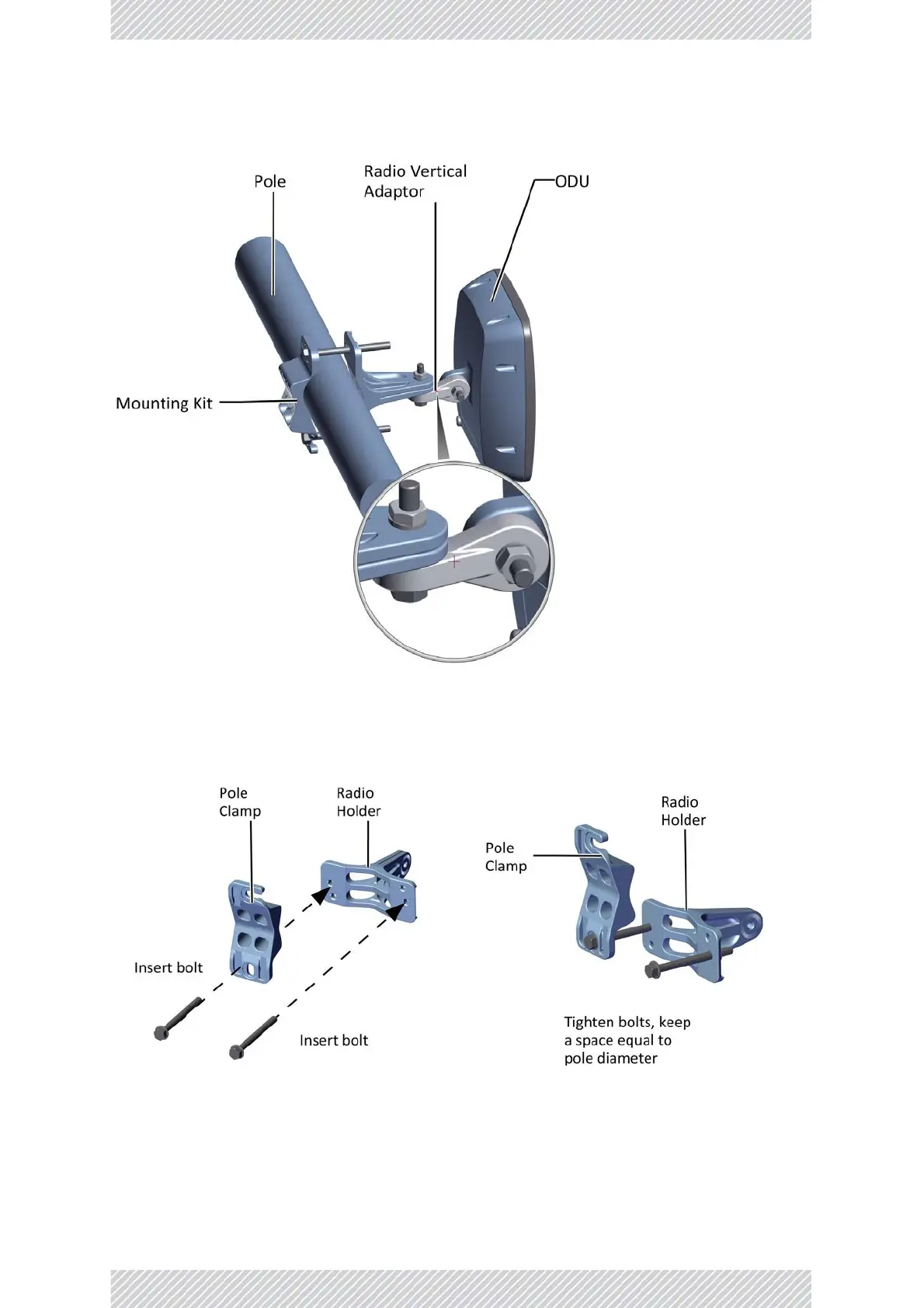

Figure4‐20:MountinganODUonahorizontalpole
Whenmountingonathinpole,positionthepoleclampasshowninthefollowingfigures:
Figure4‐21:ConnectPoleClamptoRadio
Holder
Figure4‐22:Tightenbolts
