Radwin 2000+ SERIES - Figure 4-12 Rotate Clamp and Tighten Bolts; Figure 4-13 Mounting Kit on Pole

RADWIN2000+SeriesUserManual Release4.2.40 4‐14
MountinganODU,GSU,orHSS
2. Placethis“assembly”onthepolewhereyouwanttomounttheODU.
3. Onceitisinplace,rotatethepoleclampasshown,thentightenbothbolts.

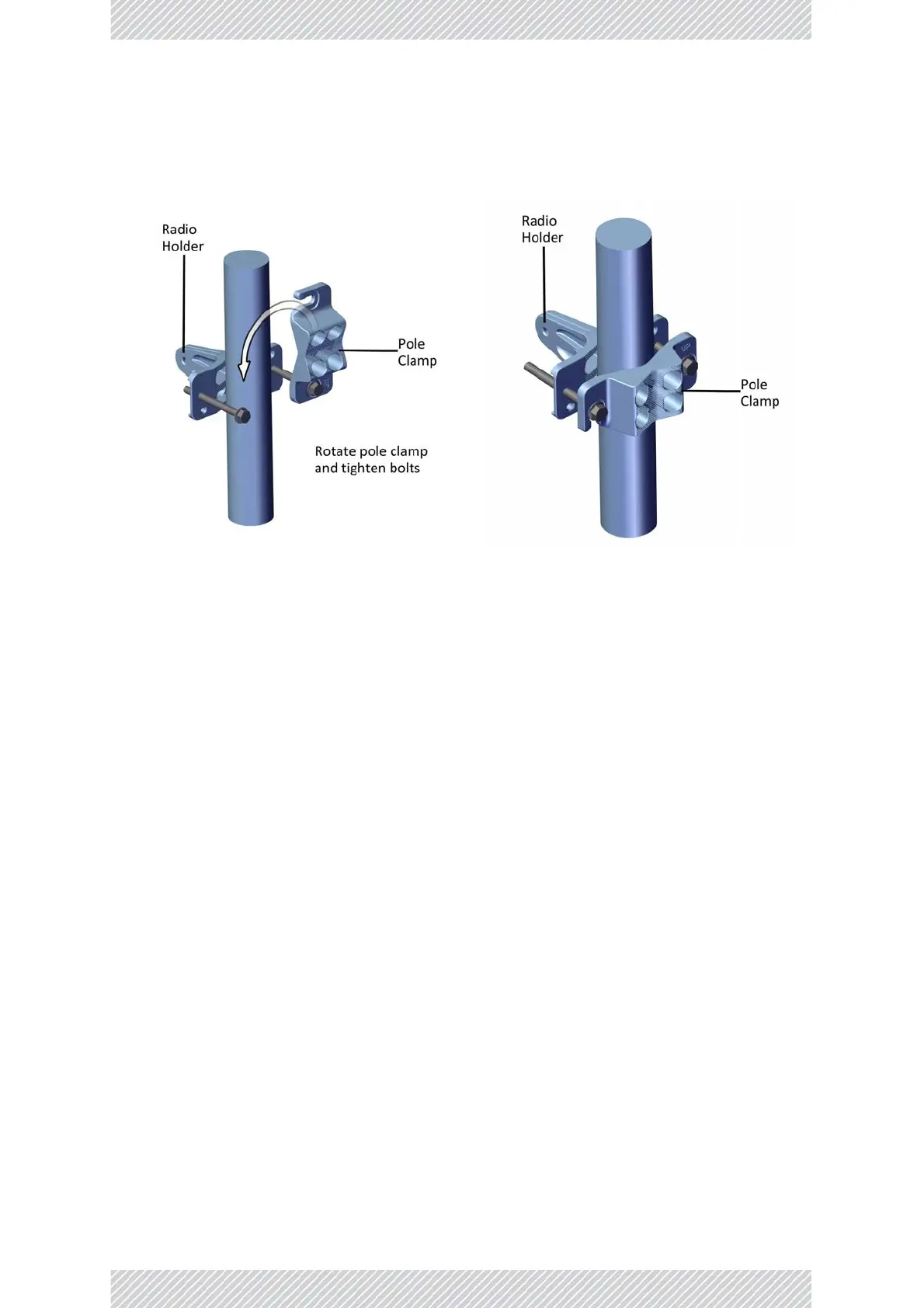

Figure4‐12:RotateClampandtightenbolts Figure4‐13:MountingKitonpole
