RADWIN2000+SeriesUserManual Release4.2.40 4‐29
EthernetHubSiteSynchronization
completedescriptionoftheHSSserialconnectionsaremorecomplex‐seeSHSSHardware
Installationonpage 10‐1.forcompletedirections.
RADWINrecommendsthatyousealeachconnectionagainstwaterleakage.SeeAdditional
ConsiderationsforWaterproofingforinstructionsondoingso.

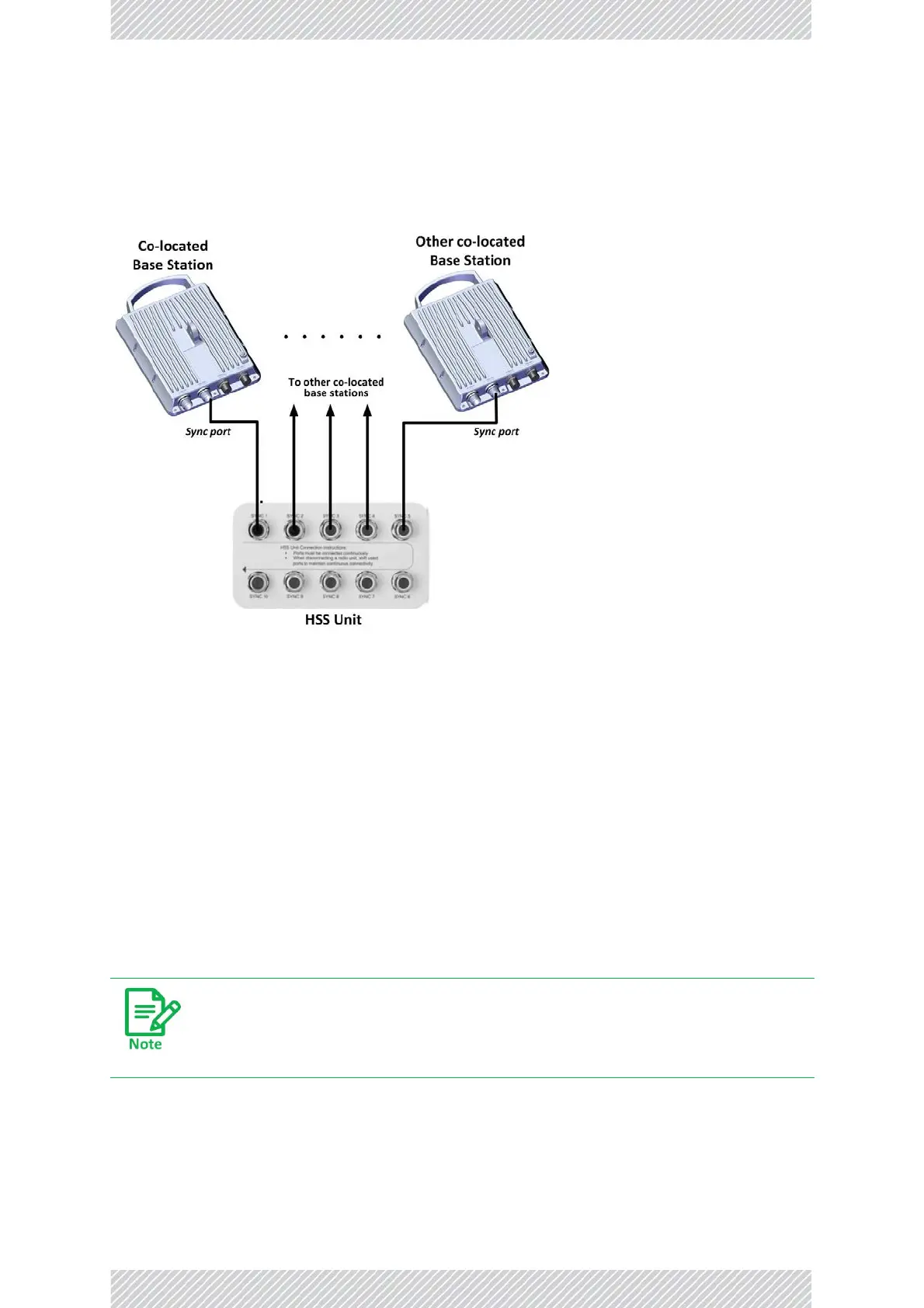

Figure4‐42:Connections:SerialHSSusingtheHSSunit
4.9.2EthernetHubSiteSynchronization
Inthiscase,therelevantunitsareconnectedviaatheIDU‐H/HP.
TheunitsareconnectedtothePoEportontheIDU‐H/HP.Theporttheradiounitusesforthis
connectiondependsonthespecificmodelyouareworkingwith,asfollows:
• RADWIN2000C+:ConnecttoIDUport
• RADWIN2000D+:ConnecttoIDUport
• RADWIN2000A+:ConnecttoPoEport
• RADWIN2000i:ConnecttoeithertheLAN1orLAN2port

TheEthernetHSS(HSSoE)methodrequiresLayer2Ethernetconnectivity
betweencollocatedODUs.Formoredetails,seeHSSoEConcepts.
